PDB-code
| Kinase structure | |
| Kinase: | MAP4K4 (HGK) |
| Family: | STE20 |
| Group: | STE |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 2088 |
| PDB: | 5W5Q |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2018-06-20 |
| PubMed: | 31531194 |
| Chain: | B |
| (Alternate) Model: | B |
| More entries for 5W5Q | |||||
| 5W5Q | Alternative model: | A | Chain: | A | |
| 5W5Q | Alternative model: | A | Chain: | B | |
| 5W5Q | Alternative model: | B | Chain: | A | |
| Structural information | |
| DFG conformation: | out |
| αC-helix conformation: | out |
| G-rich loop angle (distance): | 53.7° (15.6Å) |
| G-rich loop rotation: | 45.3° |
| Quality Score: | 6.8 |
| Resolution: | 2.33 Å |
| Missing Residues: | 2 |
| Missing Atoms: | 0 |

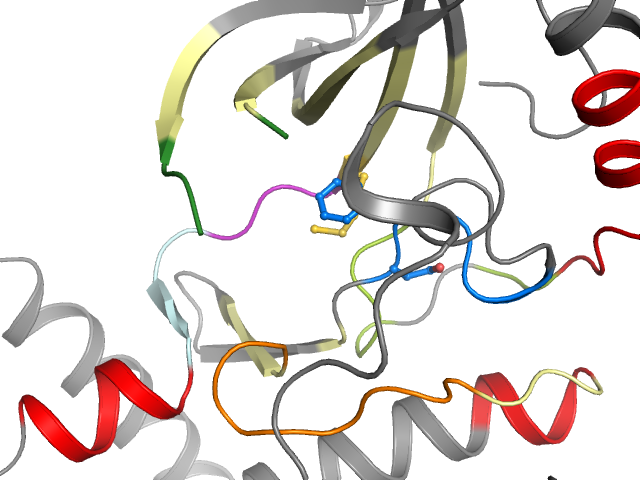

| Pocket alignment | |
| Uniprot sequence: | EVVGNGTYGQVYKAAIKVMEIKLEINMLKKYSRNIATYYGAWLVMEFCGAGSITDLVKNHLHIHHVIHRDIKGQNVLLLVDFGVS |
| Sequence structure: | EVVGNG__GQVYKAAIKVMEIKLEINMLKKYSRNIATYYGAWLVMEFCGAGSITDLVKNHLHIHHVIHRDIKGQNVLLLVDFGVS |
