PDB-code
| Kinase structure | |
| Kinase: | MAPK9 (JNK2) |
| Family: | MAPK |
| Group: | CMGC |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1497 |
| PDB: | 7CML |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2020-08-11 |
| Chain: | A |
| (Alternate) Model: | A |
| More entries for 7CML | |||||
| 7CML | Alternative model: | A | Chain: | B | |
| 7CML | Alternative model: | B | Chain: | A | |
| 7CML | Alternative model: | B | Chain: | B | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | out |
| G-rich loop angle (distance): | - |
| G-rich loop rotation: | - |
| Quality Score: | 4.8 |
| Resolution: | 2.15 Å |
| Missing Residues: | 10 |
| Missing Atoms: | 8 |

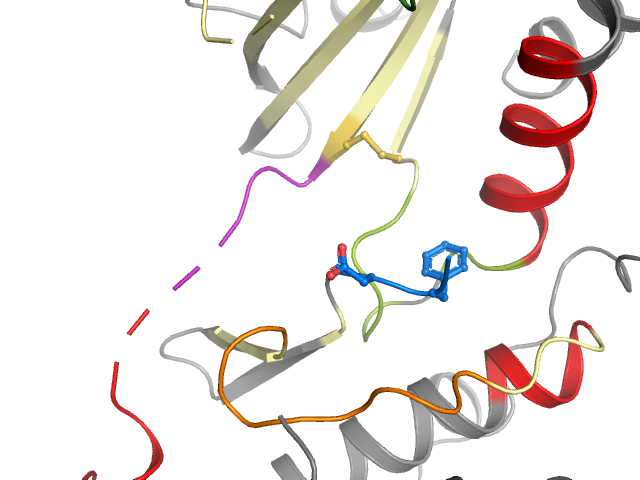

| Pocket alignment | |
| Uniprot sequence: | KPIGSGAQGIVCAVAVKKLRAYRELVLLKCVNKNIISLLNVYLVMELMD-ANLCQVIHMHLHSAGIIHRDLKPSNIVVILDFGLA |
| Sequence structure: | KPI___AQGIVCAVAVKKLRAYRELVLLKCVNKNIISLLNVYLVMELM______QVIHMHLHSAGIIHRDLKPSNIVVILDFG__ |
