PDB-code
| Kinase structure | |
| Kinase: | EPHB1 (EphB1) |
| Family: | Eph |
| Group: | TK |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1830 |
| PDB: | 6UMW |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2020-10-14 |
| PubMed: | 33627480 |
| Chain: | A |
| (Alternate) Model: | A |
| More entries for 6UMW | |||||
| 6UMW | Alternative model: | B | Chain: | A | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 60.4° (18.1Å) |
| G-rich loop rotation: | 67° |
| Quality Score: | 6.8 |
| Resolution: | 1.982 Å |
| Missing Residues: | 3 |
| Missing Atoms: | 0 |

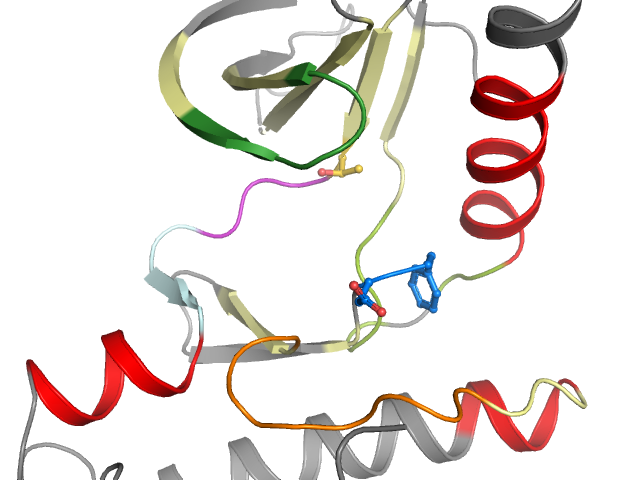

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I1 I2 | Ligand No No | Protein Yes No | ||
| Pocket alignment | |
| Uniprot sequence: | EVIGAGEFGEVYKVAIKTLDFLSEASIMGQFDPNIIRLEGVMIITEFMENGALDSFLRQYLAEMNYVHRDLAARNILVVSDFGLS |
| Sequence structure: | EVIGAGEFGEVYKVAIKTLDFLSEASIMGQFDPNIIRLEGVMIITEFMENGALDSFLRQYLAEMNYVHRDLAARNILVVSDF___ |
