PDB-code
| Kinase structure | |
| Kinase: | SRPK1 |
| Family: | SRPK |
| Group: | CMGC |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 2208 |
| PDB: | 7DD1 |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2021-04-21 |
| PubMed: | 33997701 |
| Chain: | A |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 60.7° (18.9Å) |
| G-rich loop rotation: | 30° |
| Quality Score: | 8 |
| Resolution: | 2.05 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |
| Ligand binding mode | ||||
| Waters | ||||
| Cluster I3 I4 I5 | Ligand No No No | Protein Yes Yes Yes | ||

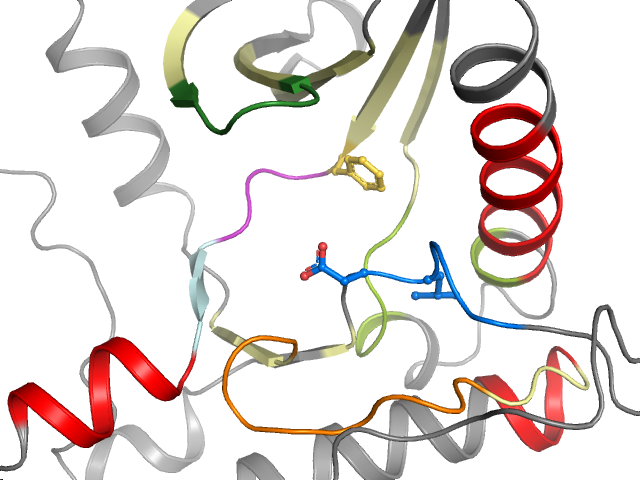

| Pocket alignment | |
| Uniprot sequence: | RKLGWGHFSTVWLVAMKVVTALDEIRLLKSVREMVVQLLDDCMVFEVLG-HHLLKWIIKLHTKCRIIHTDIKPENILLIADLGNA |
| Sequence structure: | RKLGWGHFSTVWLVAMKVVTALDEIRLLKSVREMVVQLLDDCMVFEVLG_HHLLKWIIKLHTKCRIIHTDIKPENILLIADLGNA |
