PDB-code
| Kinase structure | |
| Kinase: | EGFR |
| Family: | EGFR |
| Group: | TK |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1797 |
| PDB: | 7SI1 |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2022-10-26 |
| Chain: | A |
| (Alternate) Model: | B |
| More entries for 7SI1 | |||||
| 7SI1 | Alternative model: | A | Chain: | A | |
| 7SI1 | Alternative model: | C | Chain: | A | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | - |
| G-rich loop rotation: | - |
| Quality Score: | 8 |
| Resolution: | 1.6 Å |
| Missing Residues: | 4 |
| Missing Atoms: | 4 |

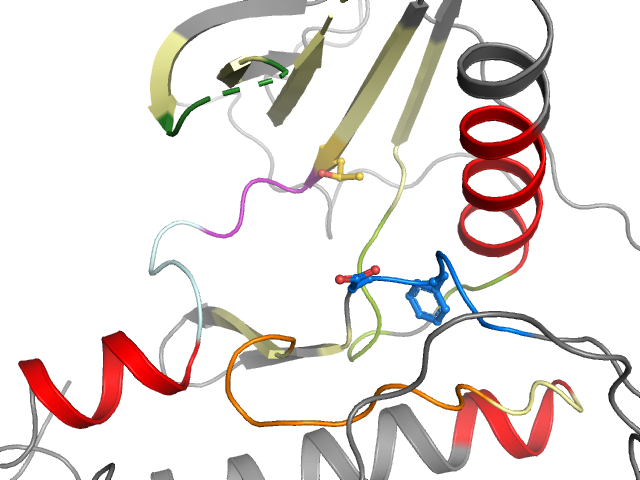

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I2 I3 I4 I9 I11 | Ligand No No No No No | Protein No No Yes No No | ||
| Pocket alignment | |
| Uniprot sequence: | KVLGSGAFGTVYKVAIKELEILDEAYVMASVDPHVCRLLGIQLITQLMPFGCLLDYVREYLEDRRLVHRDLAARNVLVITDFGLA |
| Sequence structure: | KVLGS___GTVYKVAIKE_EILDEAYVMASVDPHVCRLLGIQLITQLMPFGCLLDYVREYLEDRRLVHRDLAARNVLVITDFGLA |
