PDB-code
| Kinase structure | |
| Kinase: | CAMK2B (CaMK2b) |
| Family: | CAMK2 |
| Group: | CAMK |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1556 |
| PDB: | 3BHH |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2007-12-11 |
| Chain: | C |
| More entries for 3BHH | |||
| 3BHH | Chain: | A | |
| 3BHH | Chain: | B | |
| 3BHH | Chain: | D | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | - |
| G-rich loop rotation: | - |
| Quality Score: | 5.6 |
| Resolution: | 2.4 Å |
| Missing Residues: | 6 |
| Missing Atoms: | 31 |

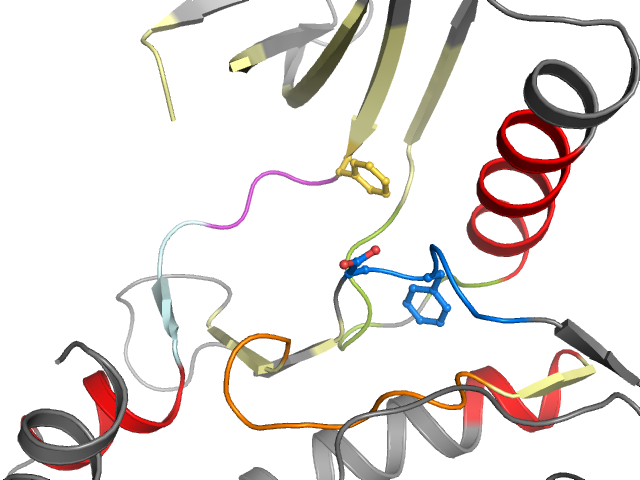

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I5 | Ligand No | Protein Yes | ||
| Pocket alignment | |
| Uniprot sequence: | EDIGKGAFSVVRRYAAKIIKLEREARICRLLKSNIVRLHDSYLVFDLVTGGELFEDIVAHCHQMGVVHRDLKPENLLLLADFGLA |
| Sequence structure: | EDI______VVRRYAAKIIKLEREARICRLLKSNIVRLHDSYLVFDLVTGGELFEDIVAHCHQMGVVHRDLKPENLLLLADFGLA |
