PDB-code
| Kinase structure | |
| Kinase: | PIM1 |
| Family: | PIM |
| Group: | CAMK |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 2158 |
| PDB: | 7VSY |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2023-12-27 |
| Chain: | A |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 53.5° (16.1Å) |
| G-rich loop rotation: | 41.7° |
| Quality Score: | 9.7 |
| Resolution: | 2.141 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 3 |

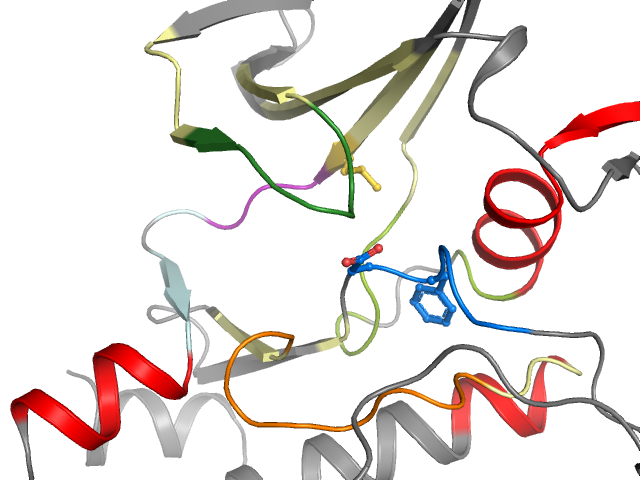

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I1 I4 I5 | Ligand No No No | Protein Yes Yes Yes | ||
| Pocket alignment | |
| Uniprot sequence: | PLLGSGGFGSVYSVAIKHVRVPMEVVLLKKVSSGVIRLLDWVLILERPEVQDLFDFITEHCHNCGVLHRDIKDENILILIDFGSG |
| Sequence structure: | PLLGSGGFGSVYSVAIKHVRVPMEVVLLKKVSSGVIRLLDWVLILERPEVQDLFDFITEHCHNCGVLHRDIKDENILILIDFGSG |
