PDB-code
| Kinase structure | |
| Kinase: | PAK5 |
| Family: | STE20 |
| Group: | STE |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 2138 |
| PDB: | 2F57 |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2005-12-13 |
| PubMed: | 17292838 |
| Chain: | A |
| (Alternate) Model: | B |
| More entries for 2F57 | |||||
| 2F57 | Alternative model: | A | Chain: | A | |
| 2F57 | Alternative model: | A | Chain: | B | |
| 2F57 | Alternative model: | B | Chain: | B | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 69.6° (21.6Å) |
| G-rich loop rotation: | 33.1° |
| Quality Score: | 8 |
| Resolution: | 1.8 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 20 |

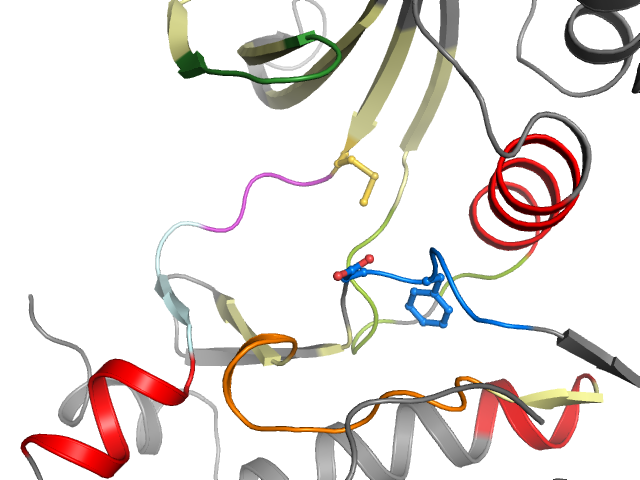

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I1 I2 I3 I4 I5 I9 | Ligand No No No No No No | Protein Yes Yes Yes Yes Yes No | ||
| Pocket alignment | |
| Uniprot sequence: | IKIGEGSTGIVCIVAVKKMLLFNEVVIMRDYHDNVVDMYSSWVVMEFLEGGALTDIVTHYLHNQGVIHRDIKSDSILLLSDFGFC |
| Sequence structure: | IKIGEGSTGIVCIVAVKKMLLFNEVVIMRDYHDNVVDMYSSWVVMEFLEGGALTDIVTHYLHNQGVIHRDIKSDSILLLSDFGFC |
