PDB-code
| Kinase structure | |
| Kinase: | EPHA3 (EphA3) |
| Family: | Eph |
| Group: | TK |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1823 |
| PDB: | 2QOI |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2007-08-21 |
| PubMed: | 18547520 |
| Chain: | A |
| (Alternate) Model: | A |
| More entries for 2QOI | |||||
| 2QOI | Alternative model: | B | Chain: | A | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 69.7° (20.4Å) |
| G-rich loop rotation: | 64.7° |
| Quality Score: | 6.8 |
| Resolution: | 1.25 Å |
| Missing Residues: | 3 |
| Missing Atoms: | 0 |

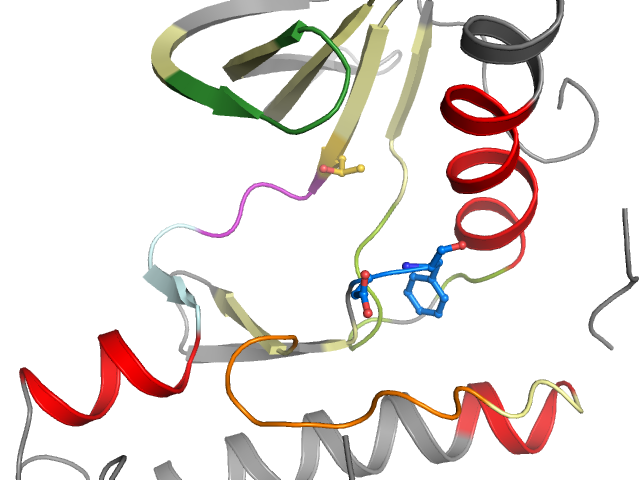

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I1 I5 I6 I9 I10 | Ligand No No No No No | Protein Yes Yes Yes No Yes | ||
| Pocket alignment | |
| Uniprot sequence: | KVVGAGEFGEVCSVAIKTLDFLGEASIMGQFDPNIIRLEGVMIVTEYMENGSLDSFLRKYLSDMGYVHRDLAARNILIVSDFGLS |
| Sequence structure: | KVVGAGEFGEVCSVAIKTLDFLGEASIMGQFDPNIIRLEGVMIVTEYMENGSLDSFLRKYLSDMGYVHRDLAARNILIVSDF___ |
