PDB-code
| Kinase structure | |
| Kinase: | EPHA3 (EphA3) |
| Family: | Eph |
| Group: | TK |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1823 |
| PDB: | 2QOC |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2007-08-21 |
| PubMed: | 18547520 |
| Chain: | A |
| (Alternate) Model: | B |
| More entries for 2QOC | |||||
| 2QOC | Alternative model: | A | Chain: | A | |
| 2QOC | Alternative model: | C | Chain: | A | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 64° (19.2Å) |
| G-rich loop rotation: | 77.5° |
| Quality Score: | 8 |
| Resolution: | 1.25 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |
| Ligand binding mode | ||||
| Waters | ||||
| Cluster I1 I3 I5 I6 I7 I10 | Ligand No No No No No No | Protein Yes Yes Yes No No No | ||

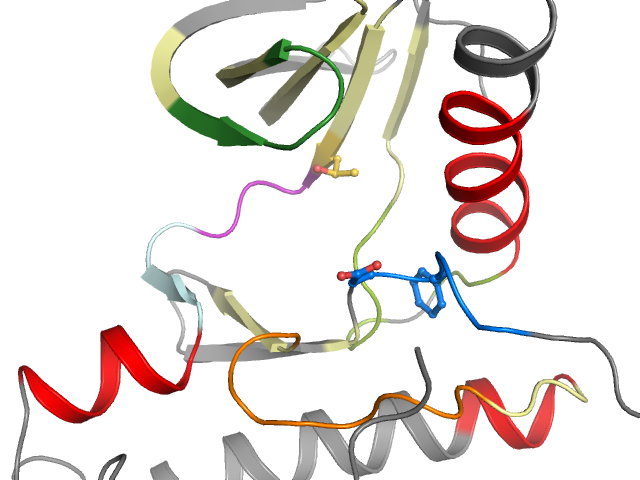

| Pocket alignment | |
| Uniprot sequence: | KVVGAGEFGEVCSVAIKTLDFLGEASIMGQFDPNIIRLEGVMIVTEYMENGSLDSFLRKYLSDMGYVHRDLAARNILIVSDFGLS |
| Sequence structure: | KVVGAGEFGEVCSVAIKTLDFLGEASIMGQFDPNIIRLEGVMIVTEYMENGSLDSFLRKYLSDMGYVHRDLAARNILIVSDFGLS |
