PDB-code
| Kinase structure | |
| Kinase: | MLKL |
| Family: | TKL-Unique |
| Group: | TKL |
| Species: | HUMAN |
| PDB: | 4M67 |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2013-10-16 |
| PubMed: | 24095729 |
| Chain: | A |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 54.7° (17.1Å) |
| G-rich loop rotation: | 46.9° |
| Quality Score: | 8 |
| Resolution: | 1.9 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |
| Ligand binding mode | ||||
| Waters | ||||
| Cluster I3 I5 I8 I11 O2 | Ligand No No No No No | Protein Yes Yes No Yes Yes | ||

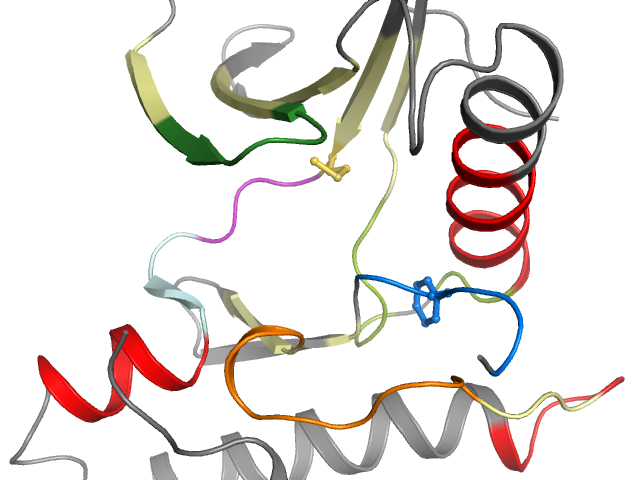

| Pocket alignment | |
| Uniprot sequence: | ILLRENEVSTLYKVAIKVFTFNKEIKTMKKFEPNILRIFGISIVMEYCELGTLRELLDRHHSEAPELHGKIRSSNFLVLAGFELR |
| Sequence structure: | ILLRENEVSTLYKVAIKVFTFNKEIKTMKKFEPNILRIFGISIVMEYCELGTLRELLDRHHSEAPELHGKIRSSNFLVLAGFELR |
