PDB-code
| Kinase structure | |
| Kinase: | MARK3 |
| Family: | CAMKL |
| Group: | CAMK |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 2099 |
| PDB: | 3FE3 |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2008-12-16 |
| PubMed: | 16803889 |
| Chain: | A |
| (Alternate) Model: | B |
| More entries for 3FE3 | |||||
| 3FE3 | Alternative model: | A | Chain: | A | |
| 3FE3 | Alternative model: | A | Chain: | B | |
| 3FE3 | Alternative model: | B | Chain: | B | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | out |
| G-rich loop angle (distance): | 60.2° (18.2Å) |
| G-rich loop rotation: | 51.3° |
| Quality Score: | 8 |
| Resolution: | 1.9 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

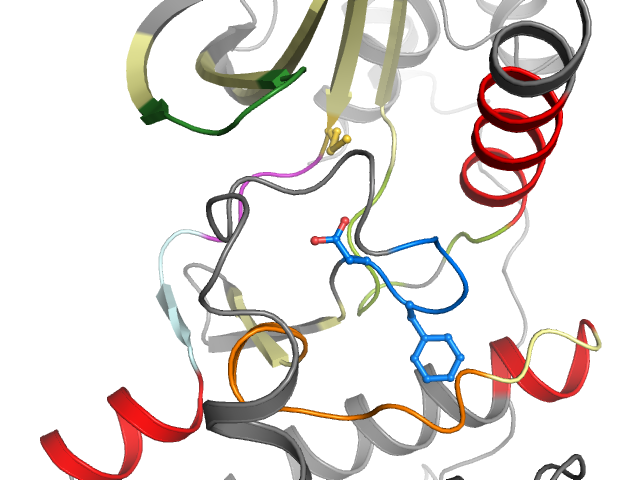

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I1 I3 I5 I6 | Ligand No No No No | Protein No Yes Yes No | ||
| Pocket alignment | |
| Uniprot sequence: | KTIGKGNFAKVKLVAIKIIKLFREVRIMKILNPNIVKLFEVYLIMEYASGGEVFDYLVAYCHQKRIVHRDLKAENLLLIADFGFS |
| Sequence structure: | KTIGKGNFAKVKLVAIKIIKLFREVRIMKILNPNIVKLFEVYLIMEYASGGEVFDYLVAYCHQKRIVHRDLKAENLLLIADFGFS |
