PDB-code
| Kinase structure | |
| Kinase: | GAK |
| Family: | NAK |
| Group: | Other |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 2027 |
| PDB: | 4O38 |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2014-01-01 |
| Chain: | A |
| (Alternate) Model: | B |
| More entries for 4O38 | |||||
| 4O38 | Alternative model: | A | Chain: | A | |
| 4O38 | Alternative model: | A | Chain: | B | |
| 4O38 | Alternative model: | B | Chain: | B | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 53.8° (17Å) |
| G-rich loop rotation: | 41.8° |
| Quality Score: | 7.6 |
| Resolution: | 2.1 Å |
| Missing Residues: | 1 |
| Missing Atoms: | 0 |
| Ligand binding mode | ||||
| Waters | ||||
| Cluster I1 I3 I4 | Ligand No No No | Protein Yes Yes Yes | ||

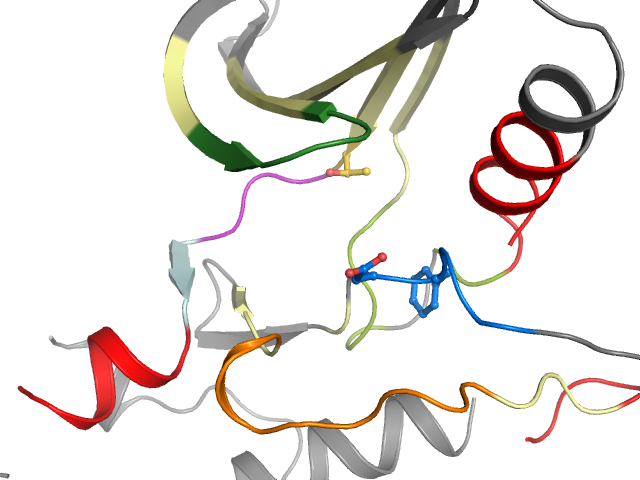

| Pocket alignment | |
| Uniprot sequence: | RVLAEGGFAFVYEYALKRLAIIQEVCFMKKLSPNIVQFCSALLLTELCK-GQLVEFLKKHRQKPPIIHRDLKVENLLLLCDFGSA |
| Sequence structure: | RVLAEGGFAFVYEYALKRLAIIQEVCF_KKLSPNIVQFCSALLLTELCK_GQLVEFLKKHRQKPPIIHRDLKVENLLLLCDFGSA |
