PDB-code
| Kinase structure | |
| Kinase: | PRKCI (PKCi) |
| Family: | PKC |
| Group: | AGC |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1490 |
| PDB: | 3A8X |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2010-05-05 |
| PubMed: | 20445233 |
| Chain: | A |
| More entries for 3A8X | |||
| 3A8X | Chain: | B | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 55.4° (16.5Å) |
| G-rich loop rotation: | 53.7° |
| Quality Score: | 8 |
| Resolution: | 2 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

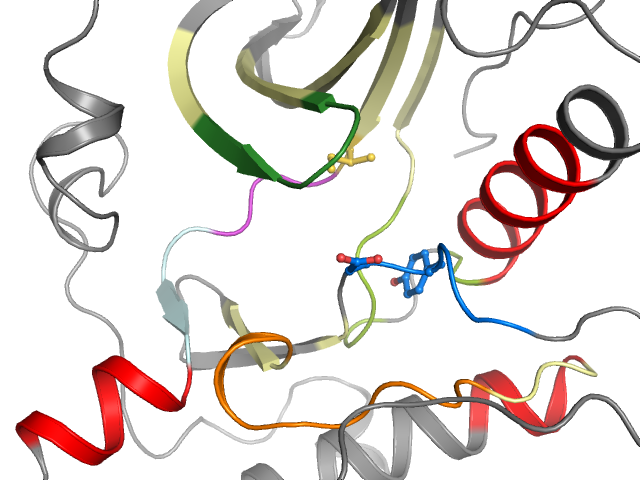

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I1 I2 I3 I4 I6 I8 I9 I11 | Ligand No No No No No No No No | Protein Yes Yes Yes Yes Yes Yes No Yes | ||
| Pocket alignment | |
| Uniprot sequence: | RVIGRGSYAKVLLYAMKVVWVQTEKHVFEQASPFLVGLHSCFFVIEYVNGGDLMFHMQRYLHERGIIYRDLKLDNVLLLTDYGMC |
| Sequence structure: | RVIGRGSYAKVLLYAMKVVWVQTEKHVFEQASPFLVGLHSCFFVIEYVNGGDLMFHMQRYLHERGIIYRDLKLDNVLLLTDYGMC |
