PDB-code
| Kinase structure | |
| Kinase: | ROR2 |
| Family: | Ror |
| Group: | TK |
| Species: | HUMAN |
| PDB: | 3ZZW |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2011-09-14 |
| Chain: | A |
| (Alternate) Model: | A |
| More entries for 3ZZW | |||||
| 3ZZW | Alternative model: | A | Chain: | B | |
| 3ZZW | Alternative model: | B | Chain: | A | |
| 3ZZW | Alternative model: | B | Chain: | B | |
| Structural information | |
| DFG conformation: | out-like |
| αC-helix conformation: | out |
| G-rich loop angle (distance): | 72.8° (20.8Å) |
| G-rich loop rotation: | 74.7° |
| Quality Score: | 7.2 |
| Resolution: | 2.9 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

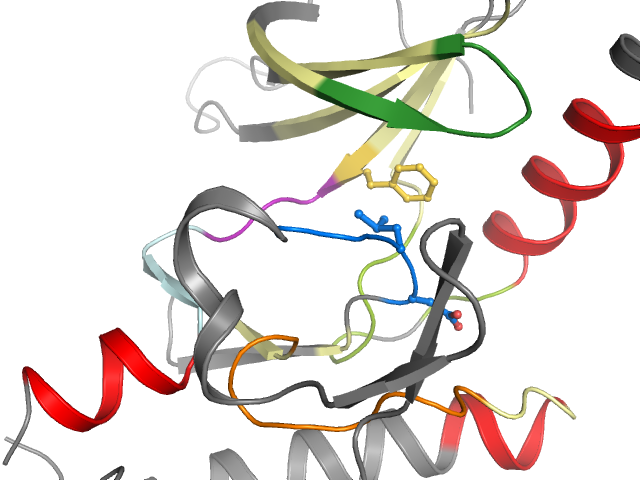

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I9 | Ligand No | Protein Yes | ||
| Pocket alignment | |
| Uniprot sequence: | EELGEDRFGKVYKVAIKTLEFRHEAMLRARLQPNVVCLLGVSMIFSYCSHGDLHEFLVMYLSSHHVVHKDLATRNVLVISDLGLF |
| Sequence structure: | EELGEDRFGKVYKVAIKTLEFRHEAMLRARLQPNVVCLLGVSMIFSYCSHGDLHEFLVMYLSSHHVVHKDLATRNVLVISDLGLF |
