PDB-code
| Kinase structure | |
| Kinase: | PAK6 |
| Family: | STE20 |
| Group: | STE |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 2137 |
| PDB: | 2C30 |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2006-02-08 |
| PubMed: | 17292838 |
| Chain: | A |
| (Alternate) Model: | B |
| More entries for 2C30 | |||||
| 2C30 | Alternative model: | A | Chain: | A | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 76.8° (22.9Å) |
| G-rich loop rotation: | 31.6° |
| Quality Score: | 8.9 |
| Resolution: | 1.6 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 11 |

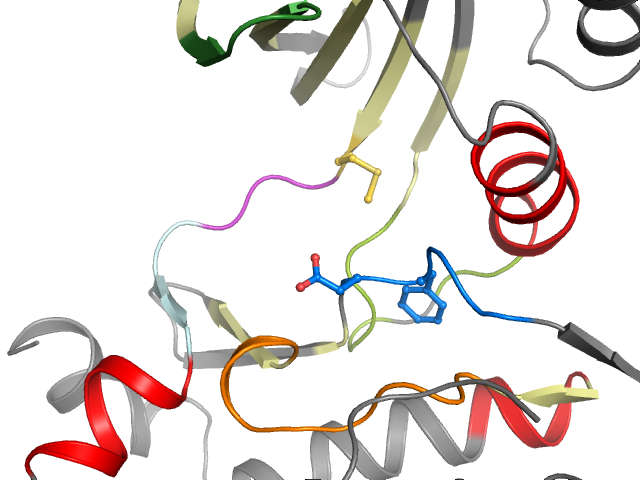

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I2 I4 I5 I10 | Ligand No No No No | Protein No Yes Yes No | ||
| Pocket alignment | |
| Uniprot sequence: | VKIGEGSTGIVCLVAVKMMLLFNEVVIMRDYQFNVVEMYKSWVLMEFLQGGALTDIVSQYLHAQGVIHRDIKSDSILLLSDFGFC |
| Sequence structure: | VKIGEGSTGIVCLVAVKMMLLFNEVVIMRDYQFNVVEMYKSWVLMEFLQGGALTDIVSQYLHAQGVIHRDIKSDSILLLSDFGFC |
