PDB-code
| Kinase structure | |
| Kinase: | CHEK2 (CHK2) |
| Family: | RAD53 |
| Group: | CAMK |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1988 |
| PDB: | 3I6U |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2009-11-10 |
| PubMed: | 19782031 |
| Chain: | A |
| More entries for 3I6U | |||
| 3I6U | Chain: | B | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | out |
| G-rich loop angle (distance): | 58° (16.7Å) |
| G-rich loop rotation: | 69° |
| Quality Score: | 8 |
| Resolution: | 3 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

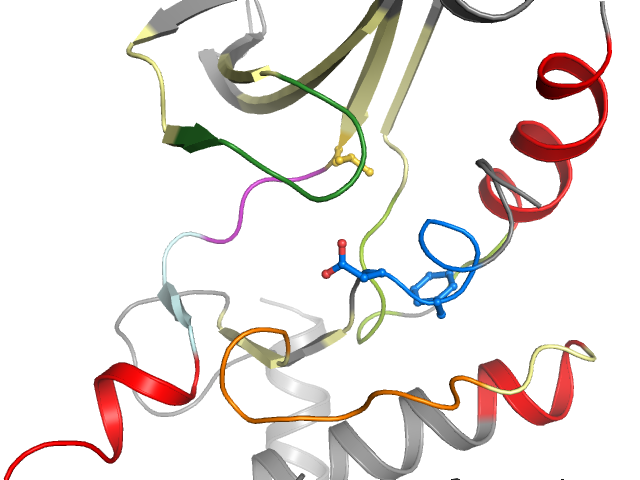

| Pocket alignment | |
| Uniprot sequence: | KTLGSGACGEVKLVAIKIINVETEIEILKKLNPCIIKIKNFYIVLELMEGGELFDKVVGYLHENGIIHRDLKPENVLLITDFGHS |
| Sequence structure: | KTLGSGACGEVKLVAIRIINVETEIEILKKLNPCIIKIKNFYIVLELMEGGELFDKVVGYLHENGIIHRDLKPENVLLITDFGHS |
