PDB-code
| Kinase structure | |
| Kinase: | CSNK2A1 (CK2a1) |
| Family: | CK2 |
| Group: | CMGC |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1549 |
| PDB: | 4MD9 |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2013-11-20 |
| PubMed: | 24175891 |
| Chain: | F |
| More entries for 4MD9 | |||
| 4MD9 | Chain: | E | |
| 4MD9 | Chain: | G | |
| 4MD9 | Chain: | H | |
| 4MD9 | Chain: | K | |
| 4MD9 | Chain: | L | |
| 4MD9 | Chain: | M | |
| 4MD9 | Chain: | P | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 49.5° (16Å) |
| G-rich loop rotation: | 42.6° |
| Quality Score: | 8 |
| Resolution: | 3.5 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

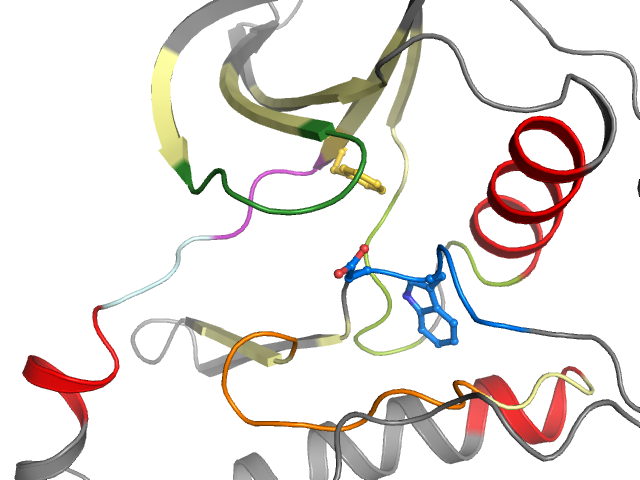

| Pocket alignment | |
| Uniprot sequence: | RKLGRGKYSEVFEVVVKILKIKREIKILENLRPNIITLADIALVFEHVN-NTDFKQ--LYCHSMGIMHRDVKPHNVMILIDWGLA |
| Sequence structure: | RKLGRGKYSEVFEVVVKILKIKREIKILENLRPNIITLADIALVFEHVN_NTDEKQ__LYCHSMGIMHRDVKPHNVMILIDWGLA |
