PDB-code
| Kinase structure | |
| Kinase: | RPS6KA1-b (RSK3-b) |
| Family: | RSKb |
| Group: | CAMK |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1527 |
| PDB: | 4NIF |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2014-11-12 |
| PubMed: | 25730857 |
| Chain: | D |
| (Alternate) Model: | B |
| More entries for 4NIF | |||||
| 4NIF | Alternative model: | A | Chain: | A | |
| 4NIF | Alternative model: | A | Chain: | B | |
| 4NIF | Alternative model: | A | Chain: | D | |
| 4NIF | Alternative model: | A | Chain: | E | |
| 4NIF | Alternative model: | B | Chain: | A | |
| 4NIF | Alternative model: | B | Chain: | B | |
| 4NIF | Alternative model: | B | Chain: | E | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 52° (15.4Å) |
| G-rich loop rotation: | 64.7° |
| Quality Score: | 9.6 |
| Resolution: | 2.15 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 4 |
| Ligand binding mode | ||||
| Waters | ||||
| Cluster I1 I4 I5 | Ligand No No No | Protein Yes Yes Yes | ||

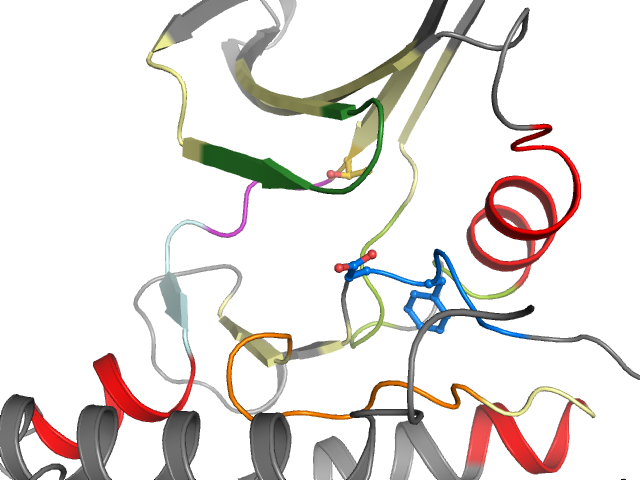

| Pocket alignment | |
| Uniprot sequence: | ETIGVGSYSECKRYAVKVIDPSEEIEILLRYGPNIITLKDVYLVTELMRGGELLDKILRYLHSQGVVHRDLKPSNILYICDFGFA |
| Sequence structure: | ETIGVGSYSECKRYAVKVIDPSEEIEILLRYGPNIITLKDVYLVTELMRGGELLDKILRYLHSQGVVHRDLKPSNILYICDFGFA |
