PDB-code
| Kinase structure | |
| Kinase: | DAPK1 |
| Family: | DAPK |
| Group: | CAMK |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 2002 |
| PDB: | 2X0G |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2010-01-26 |
| PubMed: | 20103772 |
| Chain: | A |
| (Alternate) Model: | B |
| More entries for 2X0G | |||||
| 2X0G | Alternative model: | A | Chain: | A | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 61.6° (18.2Å) |
| G-rich loop rotation: | 41.2° |
| Quality Score: | 8 |
| Resolution: | 2.2 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

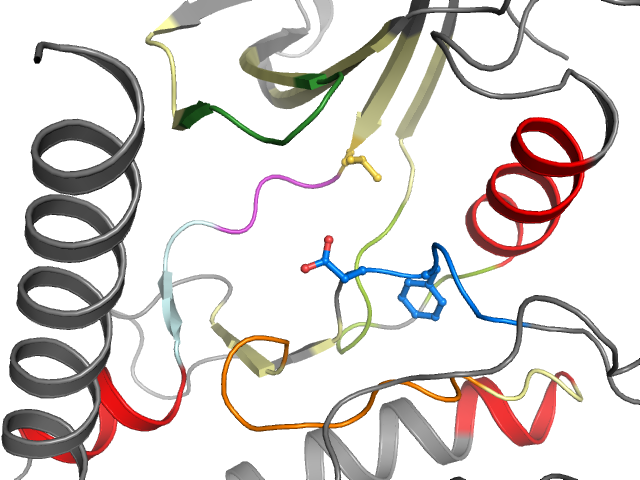

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I3 I4 I5 I6 I11 | Ligand No No No No No | Protein Yes Yes Yes No No | ||
| Pocket alignment | |
| Uniprot sequence: | EELGSGQFAVVKKYAAKFIDIEREVSILKEIQPNVITLHEVILILELVAGGELFDFLAEYLHSLQIAHFDLKPENIMLIIDFGLA |
| Sequence structure: | EELGSGQFAVVKKYAAKFIDIEREVSILKEIQPNVITLHEVILILELVAGGELFDFLAEYLHSLQIAHFDLKPENIMLIIDFGLA |
