PDB-code
| Kinase structure | |
| Kinase: | Ripk3 (RIPK3) |
| Family: | RIPK |
| Group: | TKL |
| Species: | MOUSE |
| PDB: | 4M66 |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2013-10-16 |
| PubMed: | 24095729 |
| Chain: | A |
| (Alternate) Model: | B |
| More entries for 4M66 | |||||
| 4M66 | Alternative model: | A | Chain: | A | |
| 4M66 | Alternative model: | A | Chain: | B | |
| 4M66 | Alternative model: | B | Chain: | B | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 52.4° (16.1Å) |
| G-rich loop rotation: | 41.1° |
| Quality Score: | 8 |
| Resolution: | 2.4 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

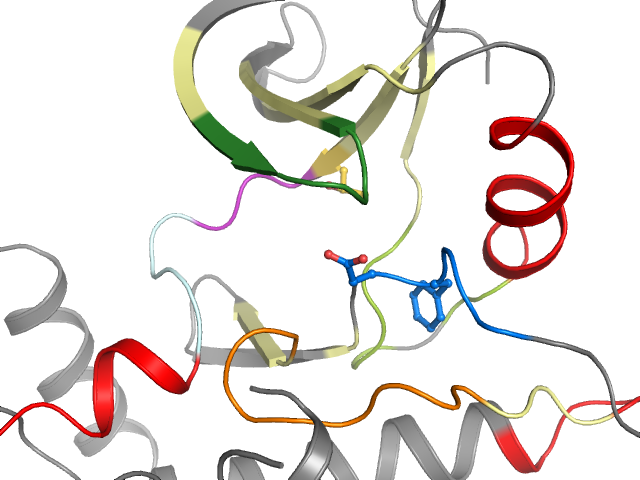

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I2 I4 I5 | Ligand No No No | Protein Yes Yes Yes | ||
| Pocket alignment | |
| Uniprot sequence: | EFVGKGGFGVVFRVAVKIVKISWEVKAMVNLRENVLLLLGVALVTRFMENGSLAGLLQPHSLNPPLLHRDLKPSNILLLADFGLS |
| Sequence structure: | EFVGKGGFGVVFRVAVKIVKISWEVKAMVNLRENVLLLLGVALVTRFMENGSLAGLLQPHSLDPPLLHRDLKPSNILLLADFGLS |
