Version: 3.2
Updated: 29-Oct-2025
Protein kinase, cAMP dependent, catalytic, alpha
Kinase structure
Kinase:Prkaca (PKACa)
Family:PKA
Group:AGC
Species:MOUSE
PDB:4WBB
sc-PDB:
KIDFamMap:Search
Release date:2015-05-20
PubMed: 26158466
Chain:B
Click to open a 3D viewer

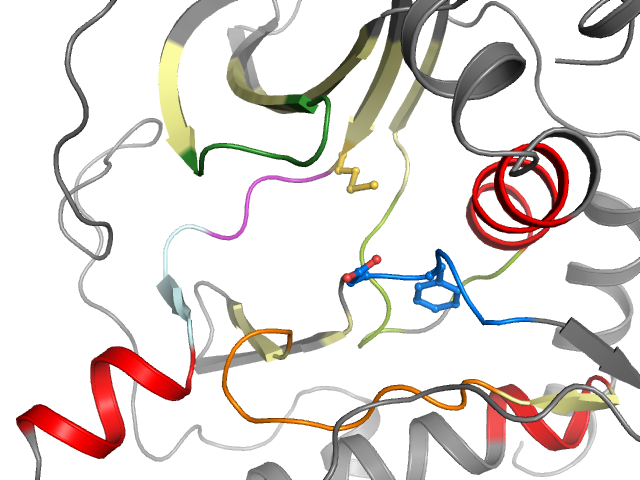

The orthosteric binding pocket
Structural information
DFG conformation:in
αC-helix conformation:in
G-rich loop angle (distance):57° (17.3Å)
G-rich loop rotation:69°
Quality Score:8
Resolution:2.8 Å
Missing Residues:0
Missing Atoms:0

Pocket alignment
Uniprot sequence:KTLGTGSFGRVMLYAMKILHTLNEKRILQAVNPFLVKLEFSYMVMEYVAGGEMFSHLRRYLHSLDLIYRDLKPENLLIVTDFGFA
Sequence structure:KTLGTGSFGRVMLYAMKILHTLNEKRILQAVNPFLVKLEFSYMVMEYVAGGEMFSHLRRYLHSLDLIYRDLKPENLLIVTDFGFA
