PDB-code
| Kinase structure | |
| Kinase: | Prkaca (PKACa) |
| Family: | PKA |
| Group: | AGC |
| Species: | MOUSE |
| PDB: | 3J4Q |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2013-11-13 |
| PubMed: | 24192038 |
| Chain: | E |
| (Alternate) Model: | A |
| More entries for 3J4Q | |||||
| 3J4Q | Alternative model: | A | Chain: | D | |
| 3J4Q | Alternative model: | B | Chain: | D | |
| 3J4Q | Alternative model: | B | Chain: | E | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 61.7° (19.2Å) |
| G-rich loop rotation: | 25.9° |
| Quality Score: | 8 |
| Resolution: | EM |
| Missing Residues: | 0 |
| Missing Atoms: | 54 |

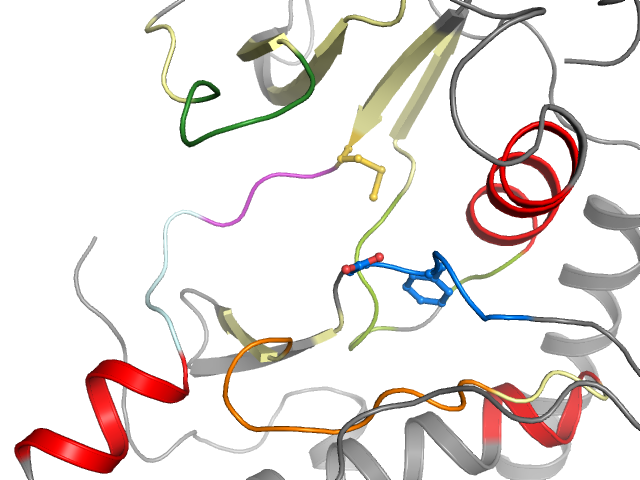

| Pocket alignment | |
| Uniprot sequence: | KTLGTGSFGRVMLYAMKILHTLNEKRILQAVNPFLVKLEFSYMVMEYVAGGEMFSHLRRYLHSLDLIYRDLKPENLLIVTDFGFA |
| Sequence structure: | KTLGTGSFGRVMLYAMKILHTLNEKRILQAVNPFLVKLEFSYMVMEYVAGGEMFSHLRRYLHSLDLIYRDLKPENLLIVTDFGFA |
