PDB-code
| Kinase structure | |
| Kinase: | Prkaca (PKACa) |
| Family: | PKA |
| Group: | AGC |
| Species: | MOUSE |
| PDB: | 4DFZ |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2012-06-06 |
| PubMed: | 22617327 |
| Chain: | E |
| (Alternate) Model: | B |
| More entries for 4DFZ | |||||
| 4DFZ | Alternative model: | A | Chain: | E | |
| 4DFZ | Alternative model: | C | Chain: | E | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 54.8° (17Å) |
| G-rich loop rotation: | 63.1° |
| Quality Score: | 9.6 |
| Resolution: | 2 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 4 |
| Ligand binding mode | ||||
| Waters | ||||
| Cluster I1 I4 I6 I8 | Ligand No No No No | Protein Yes Yes No Yes | ||

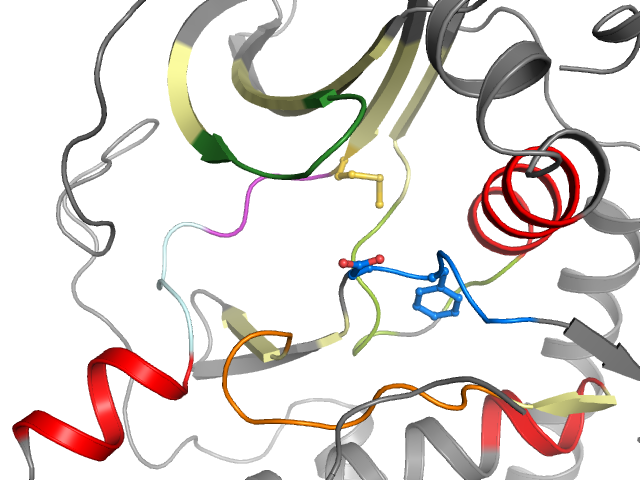

| Pocket alignment | |
| Uniprot sequence: | KTLGTGSFGRVMLYAMKILHTLNEKRILQAVNPFLVKLEFSYMVMEYVAGGEMFSHLRRYLHSLDLIYRDLKPENLLIVTDFGFA |
| Sequence structure: | KTLGTGSFGRVMLYAMKILHTLNEKRILQAVNPFLVKLEFSYMVMEYVAGGEMFSHLRRYLHSLDLIYRDLKPENLLIVTDFGFA |
