PDB-code
| Kinase structure | |
| Kinase: | MAP4K4 (HGK) |
| Family: | STE20 |
| Group: | STE |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 2088 |
| PDB: | 4U40 |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2016-01-06 |
| Chain: | B |
| (Alternate) Model: | A |
| More entries for 4U40 | |||||
| 4U40 | Alternative model: | A | Chain: | A | |
| 4U40 | Alternative model: | B | Chain: | A | |
| 4U40 | Alternative model: | B | Chain: | B | |
| Structural information | |
| DFG conformation: | out |
| αC-helix conformation: | out |
| G-rich loop angle (distance): | 54.6° (15.3Å) |
| G-rich loop rotation: | 72.6° |
| Quality Score: | 7.6 |
| Resolution: | 2.3 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

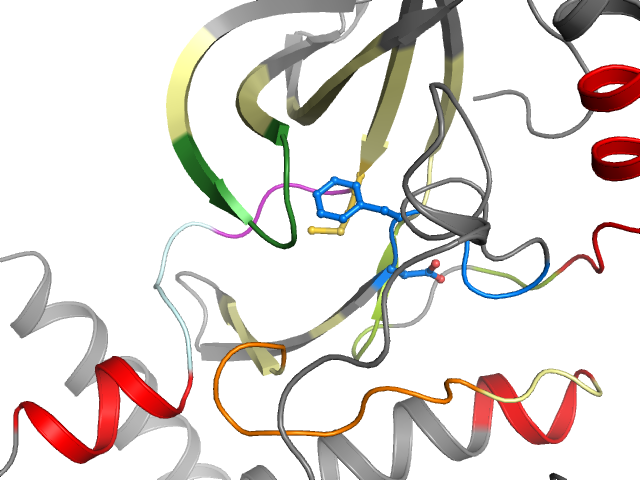

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I2 | Ligand No | Protein Yes | ||
| Pocket alignment | |
| Uniprot sequence: | EVVGNGTYGQVYKAAIKVMEIKLEINMLKKYSRNIATYYGAWLVMEFCGAGSITDLVKNHLHIHHVIHRDIKGQNVLLLVDFGVS |
| Sequence structure: | EVVGNGTYGQVYKAAIKVMEIKLEINMLKKYSRNIATYYGAWLVMEFCGAGSITDLVKNHLHIHHVIHRDIKGQNVLLLVDFGVS |
