PDB-code
| Kinase structure | |
| Kinase: | EGFR |
| Family: | EGFR |
| Group: | TK |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1797 |
| PDB: | 4WD5 |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2016-05-04 |
| Chain: | B |
| More entries for 4WD5 | |||
| 4WD5 | Chain: | A | |
| Structural information | |
| DFG conformation: | out-like |
| αC-helix conformation: | out |
| G-rich loop angle (distance): | 50.6° (14.3Å) |
| G-rich loop rotation: | 56° |
| Quality Score: | 9.2 |
| Resolution: | 3.3 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 4 |

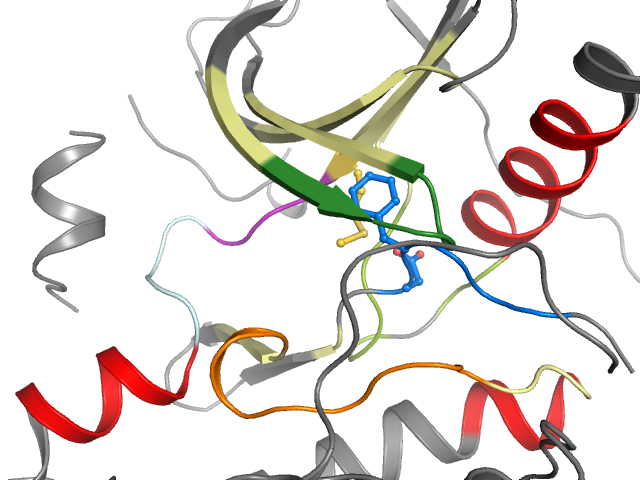

| Pocket alignment | |
| Uniprot sequence: | KVLGSGAFGTVYKVAIKELEILDEAYVMASVDPHVCRLLGIQLITQLMPFGCLLDYVREYLEDRRLVHRDLAARNVLVITDFGLA |
| Sequence structure: | KVLGSGAFGTVYKVAIKELEILDEAYVMASVDPHVCRLLGIQLIMQLMPFGCLLDYVREYLEDRRLVHRDLAARNVLVITDFGLA |
