PDB-code
| Kinase structure | |
| Kinase: | CSNK2A1 (CK2a1) |
| Family: | CK2 |
| Group: | CMGC |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1549 |
| PDB: | 5CS6 |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2016-07-27 |
| PubMed: | 28451126 |
| Chain: | B |
| (Alternate) Model: | A |
| More entries for 5CS6 | |||||
| 5CS6 | Alternative model: | A | Chain: | A | |
| 5CS6 | Alternative model: | B | Chain: | A | |
| 5CS6 | Alternative model: | B | Chain: | B | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 48.2° (15.5Å) |
| G-rich loop rotation: | 48.6° |
| Quality Score: | 6 |
| Resolution: | 1.88 Å |
| Missing Residues: | 5 |
| Missing Atoms: | 0 |

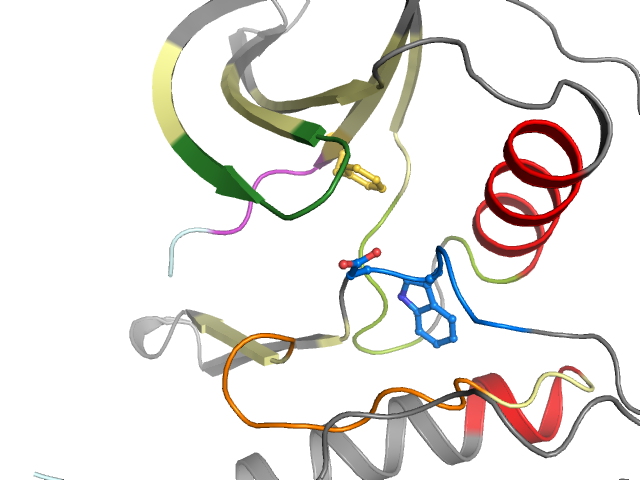

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I4 I5 | Ligand No No | Protein Yes Yes | ||
| Pocket alignment | |
| Uniprot sequence: | RKLGRGKYSEVFEVVVKILKIKREIKILENLRPNIITLADIALVFEHVN-NTDFKQ--LYCHSMGIMHRDVKPHNVMILIDWGLA |
| Sequence structure: | RKLGRGKYSEVFEVVVKILKIKREIKILENLRPNIITLADIALVFEHVN_NT_______YCHSMGIMHRDVKPHNVMILIDWGLA |
