PDB-code
| Kinase structure | |
| Kinase: | PKN1 |
| Family: | PKN |
| Group: | AGC |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1520 |
| PDB: | 4OTH |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2014-08-27 |
| PubMed: | 25111382 |
| Chain: | A |
| (Alternate) Model: | A |
| More entries for 4OTH | |||||
| 4OTH | Alternative model: | B | Chain: | A | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | out |
| G-rich loop angle (distance): | 56.3° (16.7Å) |
| G-rich loop rotation: | 44.6° |
| Quality Score: | 8 |
| Resolution: | 1.8 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

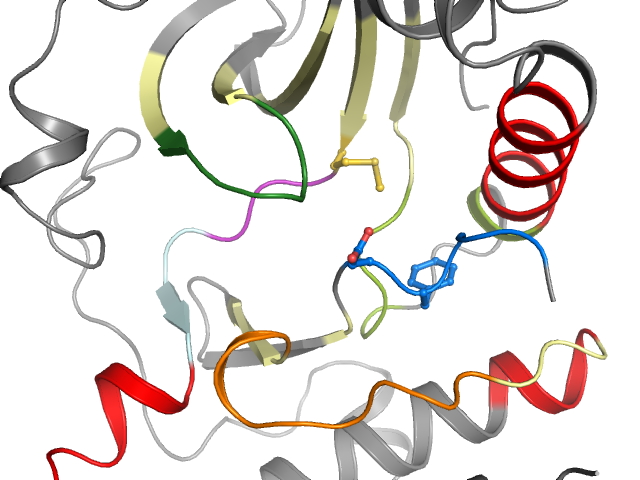

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I4 I5 | Ligand No No | Protein Yes Yes | ||
| Pocket alignment | |
| Uniprot sequence: | AVLGRGHFGKVLLFAIKALSLMCEKRILAAVTPFLVNLFGCCFVMEYSAGGDLMLHIHSFLHEHKIVYRDLKLDNLLLIADFGLC |
| Sequence structure: | AVLGRGHFGKVLLFAIKALSLMCEKRILAAVTPFLVNLFGCCFVMEYSAGGDLMLHIHSFLHEHKIVYRDLKLDNLLLIADFGLC |
