PDB-code
| Kinase structure | |
| Kinase: | CAMK2G (CaMK2g) |
| Family: | CAMK2 |
| Group: | CAMK |
| Species: | HUMAN |
| PDB: | 2V7O |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2007-09-11 |
| PubMed: | 20668654 |
| Chain: | A |
| (Alternate) Model: | B |
| More entries for 2V7O | |||||
| 2V7O | Alternative model: | A | Chain: | A | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 58.6° (18Å) |
| G-rich loop rotation: | 50.2° |
| Quality Score: | 8 |
| Resolution: | 2.25 Å |
| Missing Residues: | 1 |
| Missing Atoms: | 16 |
| Ligand binding mode | ||||
| Waters | ||||
| Cluster I5 | Ligand No | Protein Yes | ||

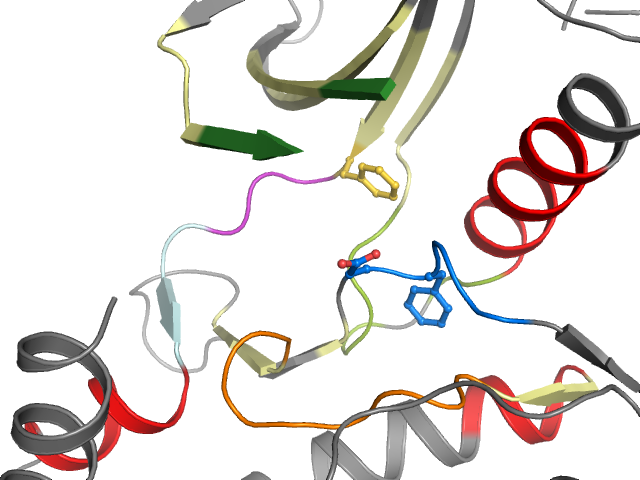

| Pocket alignment | |
| Uniprot sequence: | EELGKGAFSVVRRYAAKIIKLEREARICRLLKPNIVRLHDSYLVFDLVTGGELFEDIVAHIHQHDIVHRDLKPENLLLLADFGLA |
| Sequence structure: | EELGKG_FSVVRRYAAKIIKLEREARICRLLKPNIVRLHDSYLVFDLVTGGELFEDIVAHIHQHDIVHRDLKPENLLLLADFGLA |
