PDB-code
| Kinase structure | |
| Kinase: | EGFR |
| Family: | EGFR |
| Group: | TK |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1797 |
| PDB: | 4ZJV |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2015-08-12 |
| PubMed: | 26280531 |
| Chain: | A |
| (Alternate) Model: | A |
| More entries for 4ZJV | |||||
| 4ZJV | Alternative model: | A | Chain: | B | |
| 4ZJV | Alternative model: | B | Chain: | A | |
| 4ZJV | Alternative model: | B | Chain: | B | |
| Structural information | |
| DFG conformation: | out |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 49.5° (15.5Å) |
| G-rich loop rotation: | 42.6° |
| Quality Score: | 8 |
| Resolution: | 2.7 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

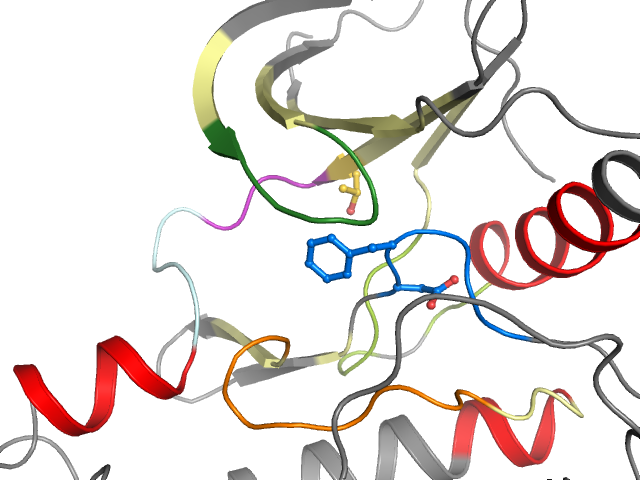

| Pocket alignment | |
| Uniprot sequence: | KVLGSGAFGTVYKVAIKELEILDEAYVMASVDPHVCRLLGIQLITQLMPFGCLLDYVREYLEDRRLVHRDLAARNVLVITDFGLA |
| Sequence structure: | KVLGSGAFGTVYKVAIKELEILDEAYVMASVDPHVCRLLGIQLITQLMPFGCLLDYVREYLEDRRLVHRDLAARNVLVITDFGLA |
