PDB-code
| Kinase structure | |
| Kinase: | EGFR |
| Family: | EGFR |
| Group: | TK |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1797 |
| PDB: | 2JIT |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2008-01-22 |
| PubMed: | 18227510 |
| Chain: | B |
| More entries for 2JIT | |||
| 2JIT | Chain: | A | |
| Structural information | |
| DFG conformation: | out-like |
| αC-helix conformation: | out |
| G-rich loop angle (distance): | 62.8° (18.8Å) |
| G-rich loop rotation: | 63.4° |
| Quality Score: | 7.6 |
| Resolution: | 3.1 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

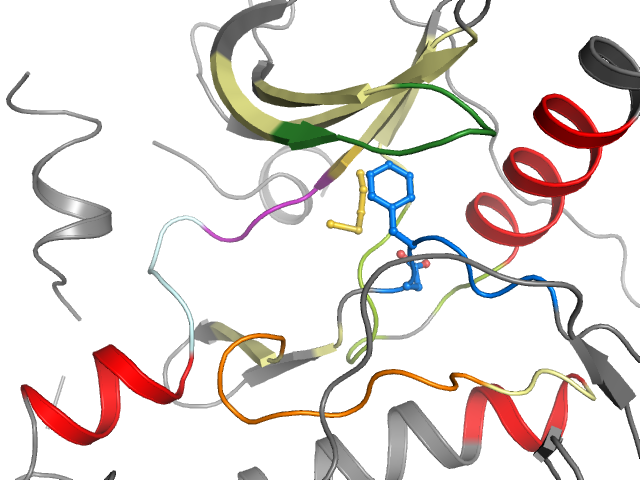

| Pocket alignment | |
| Uniprot sequence: | KVLGSGAFGTVYKVAIKELEILDEAYVMASVDPHVCRLLGIQLITQLMPFGCLLDYVREYLEDRRLVHRDLAARNVLVITDFGLA |
| Sequence structure: | KVLGSGAFGTVYKVAIKELEILDEAYVMASVDPHVCRLLGIQLIMQLMPFGCLLDYVREYLEDRRLVHRDLAARNVLVITDFGLA |
