PDB-code
| Kinase structure | |
| Kinase: | EGFR |
| Family: | EGFR |
| Group: | TK |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1797 |
| PDB: | 3IKA |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2010-01-12 |
| PubMed: | 20033049 |
| Chain: | B |
| (Alternate) Model: | B |
| More entries for 3IKA | |||||
| 3IKA | Alternative model: | A | Chain: | A | |
| 3IKA | Alternative model: | A | Chain: | B | |
| 3IKA | Alternative model: | B | Chain: | A | |
| Structural information | |
| DFG conformation: | out-like |
| αC-helix conformation: | out |
| G-rich loop angle (distance): | 52.5° (15.1Å) |
| G-rich loop rotation: | 50.9° |
| Quality Score: | 7.6 |
| Resolution: | 2.9 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

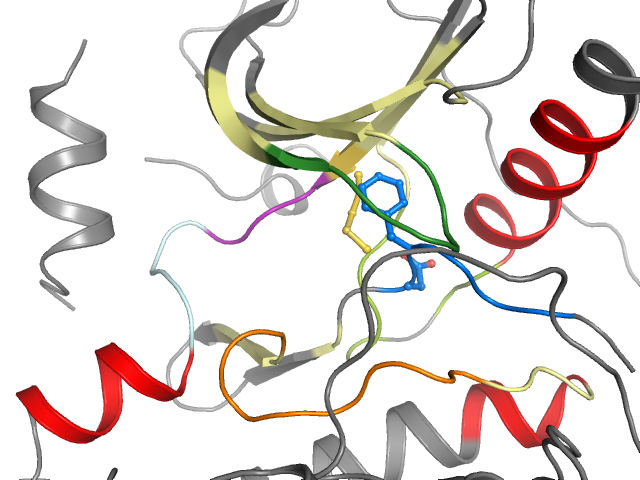

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I1 | Ligand No | Protein Yes | ||
| Pocket alignment | |
| Uniprot sequence: | KVLGSGAFGTVYKVAIKELEILDEAYVMASVDPHVCRLLGIQLITQLMPFGCLLDYVREYLEDRRLVHRDLAARNVLVITDFGLA |
| Sequence structure: | KVLGSGAFGTVYKVAIKELEILDEAYVMASVDPHVCRLLGIQLIMQLMPFGCLLDYVREYLEDRRLVHRDLAARNVLVITDFGLA |
