PDB-code
| Kinase structure | |
| Kinase: | EGFR |
| Family: | EGFR |
| Group: | TK |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1797 |
| PDB: | 4I1Z |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2013-01-16 |
| PubMed: | 23273428 |
| Chain: | A |
| (Alternate) Model: | A |
| More entries for 4I1Z | |||||
| 4I1Z | Alternative model: | B | Chain: | A | |
| Structural information | |
| DFG conformation: | out-like |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 47.6° (14.6Å) |
| G-rich loop rotation: | 30.6° |
| Quality Score: | 8 |
| Resolution: | 3 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

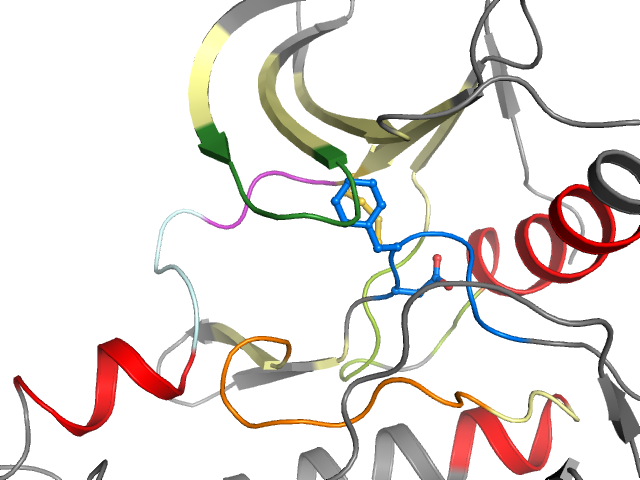

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I1 I6 | Ligand No No | Protein Yes Yes | ||
| Pocket alignment | |
| Uniprot sequence: | KVLGSGAFGTVYKVAIKELEILDEAYVMASVDPHVCRLLGIQLITQLMPFGCLLDYVREYLEDRRLVHRDLAARNVLVITDFGLA |
| Sequence structure: | KVLGSGAFGTVYKVAIKELEILDEAYVMASVDPHVCRLLGIQLIMQLMPFGCLLDYVREYLEDRRLVHRDLAARNVLVITDFGRA |
