PDB-code
| Kinase structure | |
| Kinase: | IGF1R |
| Family: | InsR |
| Group: | TK |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1801 |
| PDB: | 1P4O |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2003-04-29 |
| PubMed: | 14501110 |
| Chain: | A |
| More entries for 1P4O | |||
| 1P4O | Chain: | B | |
| Structural information | |
| DFG conformation: | out-like |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 65.3° (19Å) |
| G-rich loop rotation: | 69.1° |
| Quality Score: | 7.6 |
| Resolution: | 1.5 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

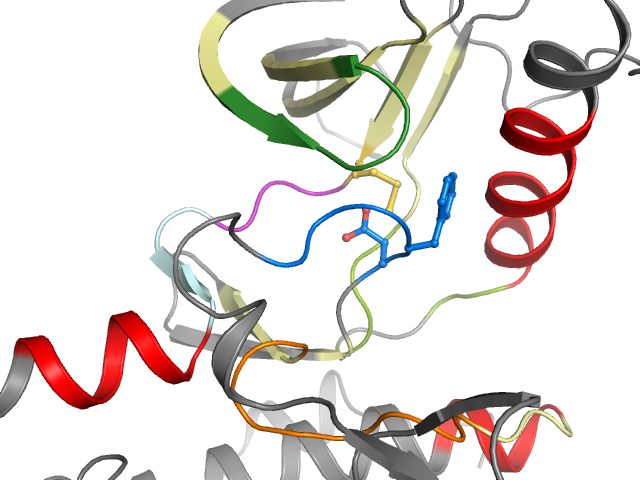

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I1 I3 I6 | Ligand No No No | Protein Yes Yes Yes | ||
| Pocket alignment | |
| Uniprot sequence: | RELGQGSFGMVYEVAIKTVEFLNEASVMKEFN-HVVRLLGVLVIMELMTRGDLKSYLRSYLNANKFVHRDLAARNCMVIGDFGMT |
| Sequence structure: | RELGQGSFGMVYEVAIKTVEFLNEASVMKEFN_HVVRLLGVLVIMELMTRGDLKSYLRSYLNANKFVHRDLAARNCMVIGDFGMT |
