PDB-code
| Kinase structure | |
| Kinase: | IGF1R |
| Family: | InsR |
| Group: | TK |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1801 |
| PDB: | 1M7N |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2003-01-07 |
| PubMed: | 12138114 |
| Chain: | A |
| More entries for 1M7N | |||
| 1M7N | Chain: | B | |
| Structural information | |
| DFG conformation: | out-like |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 66.2° (19.3Å) |
| G-rich loop rotation: | 67° |
| Quality Score: | 7.6 |
| Resolution: | 2.7 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

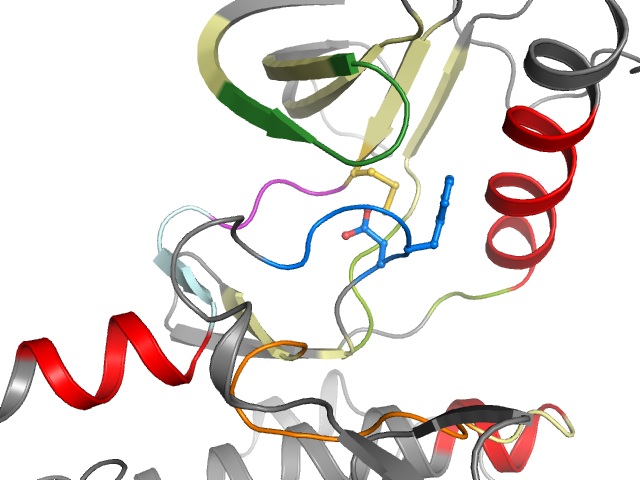

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I1 | Ligand No | Protein Yes | ||
| Pocket alignment | |
| Uniprot sequence: | RELGQGSFGMVYEVAIKTVEFLNEASVMKEFN-HVVRLLGVLVIMELMTRGDLKSYLRSYLNANKFVHRDLAARNCMVIGDFGMT |
| Sequence structure: | RELGQGSFGMVYEVAIKTVEFLNEASVMKEFN_HVVRLLGVLVIMELMTRGDLKSYLRSYLNANKFVHRDLAARNCMVIGDFGMT |
