PDB-code
| Kinase structure | |
| Kinase: | BRAF |
| Family: | RAF |
| Group: | TKL |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1943 |
| PDB: | 6Q0T |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2019-10-09 |
| PubMed: | 31581174 |
| Chain: | A |
| (Alternate) Model: | B |
| More entries for 6Q0T | |||||
| 6Q0T | Alternative model: | A | Chain: | A | |
| 6Q0T | Alternative model: | A | Chain: | B | |
| 6Q0T | Alternative model: | A | Chain: | C | |
| 6Q0T | Alternative model: | B | Chain: | B | |
| 6Q0T | Alternative model: | B | Chain: | C | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | - |
| G-rich loop rotation: | - |
| Quality Score: | 6.4 |
| Resolution: | NMR |
| Missing Residues: | 4 |
| Missing Atoms: | 253 |

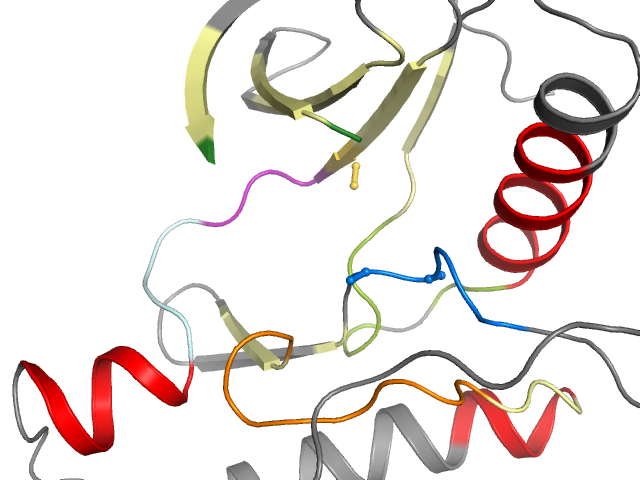

| Pocket alignment | |
| Uniprot sequence: | QRIGSGSFGTVYKVAVKMLAFKNEVGVLRKTRVNILLFMGYAIVTQWCEGSSLYHHLHIYLHAKSIIHRDLKSNNIFLIGDFGLA |
| Sequence structure: | QRIG____GTVYKVAVKMLAFKNEVGVLRKTRVNILLFMGYAIVTQWCEGSSLYHHLHIYLHAKSIIHRDLKSNNIFLIGDFGLA |
