PDB-code
| Kinase structure | |
| Kinase: | PAK4 |
| Family: | STE20 |
| Group: | STE |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 2136 |
| PDB: | 6WLX |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2020-06-24 |
| PubMed: | 32585314 |
| Chain: | A |
| (Alternate) Model: | A |
| More entries for 6WLX | |||||
| 6WLX | Alternative model: | B | Chain: | A | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 48.8° (14.6Å) |
| G-rich loop rotation: | 64.1° |
| Quality Score: | 8 |
| Resolution: | 2.2 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

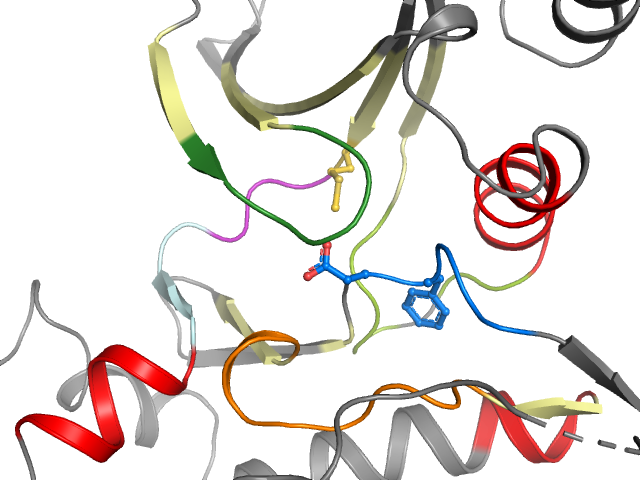

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I2 I4 | Ligand No No | Protein No Yes | ||
| Pocket alignment | |
| Uniprot sequence: | IKIGEGSTGIVCIVAVKKMLLFNEVVIMRDYQENVVEMYNSWVVMEFLEGGALTDIVTHVLHAQGVIHRDIKSDSILLLSDFGFC |
| Sequence structure: | IKIGEGSTGIVCIVAVKKMLLFNEVVIMRDYQENVVEMYNSWVVMEFLEGGALTDIVTHVLHAQGVIHRDIKSDSILLLSDFGFC |
