PDB-code
| Kinase structure | |
| Kinase: | MAPKAPK2 |
| Family: | MAPKAPK |
| Group: | CAMK |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 2094 |
| PDB: | 6TCA |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2020-07-22 |
| PubMed: | 32649858 |
| Chain: | G |
| (Alternate) Model: | A |
| More entries for 6TCA | |||||
| 6TCA | Alternative model: | A | Chain: | A | |
| 6TCA | Alternative model: | A | Chain: | B | |
| 6TCA | Alternative model: | A | Chain: | C | |
| 6TCA | Alternative model: | A | Chain: | D | |
| 6TCA | Alternative model: | A | Chain: | E | |
| 6TCA | Alternative model: | A | Chain: | F | |
| 6TCA | Alternative model: | A | Chain: | H | |
| 6TCA | Alternative model: | B | Chain: | A | |
| 6TCA | Alternative model: | B | Chain: | B | |
| 6TCA | Alternative model: | B | Chain: | C | |
| 6TCA | Alternative model: | B | Chain: | D | |
| 6TCA | Alternative model: | B | Chain: | E | |
| 6TCA | Alternative model: | B | Chain: | F | |
| 6TCA | Alternative model: | B | Chain: | G | |
| 6TCA | Alternative model: | B | Chain: | H | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 65.2° (18.4Å) |
| G-rich loop rotation: | 74.8° |
| Quality Score: | 9 |
| Resolution: | 3.7 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 10 |

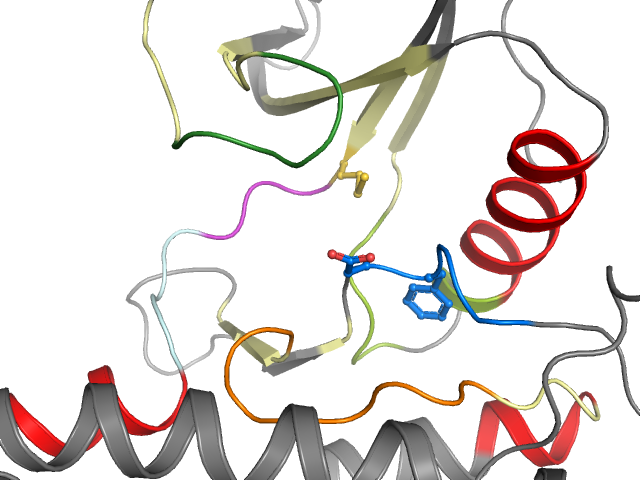

| Pocket alignment | |
| Uniprot sequence: | QVLGLGINGKVLQFALKMLKARREVELHWRASPHIVRIVDVLIVMECLDGGELFSRIQDYLHSINIAHRDVKPENLLYLTDFGFA |
| Sequence structure: | QVLGLGINGKVLQFALKMLKARREVELHWRASPHIVRIVDVLIVMECLDGGELFSRIQDYLHSINIAHRDVKPENLLYLTDFGFA |
