PDB-code
| Kinase structure | |
| Kinase: | MAP2K7 |
| Family: | STE7 |
| Group: | STE |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 2068 |
| PDB: | 6YFZ |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2020-08-11 |
| PubMed: | 32783966 |
| Chain: | A |
| (Alternate) Model: | B |
| More entries for 6YFZ | |||||
| 6YFZ | Alternative model: | A | Chain: | A | |
| Structural information | |
| DFG conformation: | out-like |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 77.6° (23Å) |
| G-rich loop rotation: | 55.7° |
| Quality Score: | 8 |
| Resolution: | 1.9 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

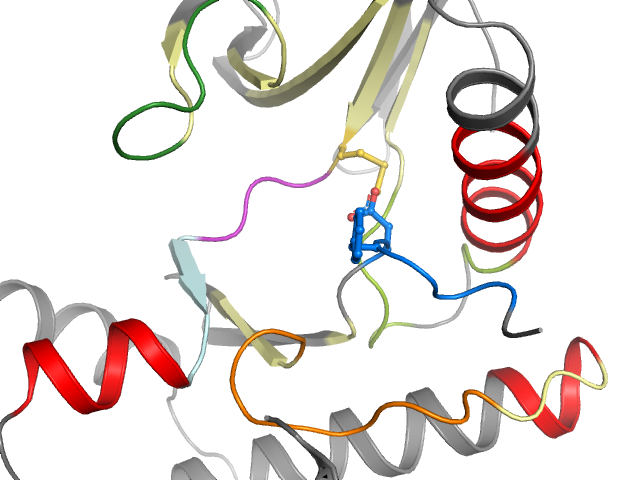

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I3 I6 | Ligand No No | Protein Yes Yes | ||
| Pocket alignment | |
| Uniprot sequence: | GEMGSGTCGQVWKIAVKQMRILMDLDVVLKSHPYIVQCFGTFIAMELMGTCAEKLKKRMLKEKHGVIHRDVKPSNILLLCDFGIS |
| Sequence structure: | GEMGSGTCGQVWKIAVKQMRILMDLDVVLKSHPYIVQCFGTFIAMELMGTCAEKLKKRMLKEKHGVIHRDVKPSNILLLCDFGIS |
