PDB-code
| Kinase structure | |
| Kinase: | ABL1 |
| Family: | Abl |
| Group: | TK |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1923 |
| PDB: | 6XRG |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2020-10-07 |
| PubMed: | 33004676 |
| Chain: | A |
| (Alternate) Model: | 16 |
| More entries for 6XRG | |||||
| 6XRG | Alternative model: | 1 | Chain: | A | |
| 6XRG | Alternative model: | 10 | Chain: | A | |
| 6XRG | Alternative model: | 11 | Chain: | A | |
| 6XRG | Alternative model: | 12 | Chain: | A | |
| 6XRG | Alternative model: | 13 | Chain: | A | |
| 6XRG | Alternative model: | 14 | Chain: | A | |
| 6XRG | Alternative model: | 15 | Chain: | A | |
| 6XRG | Alternative model: | 17 | Chain: | A | |
| 6XRG | Alternative model: | 18 | Chain: | A | |
| 6XRG | Alternative model: | 19 | Chain: | A | |
| 6XRG | Alternative model: | 2 | Chain: | A | |
| 6XRG | Alternative model: | 20 | Chain: | A | |
| 6XRG | Alternative model: | 3 | Chain: | A | |
| 6XRG | Alternative model: | 4 | Chain: | A | |
| 6XRG | Alternative model: | 5 | Chain: | A | |
| 6XRG | Alternative model: | 6 | Chain: | A | |
| 6XRG | Alternative model: | 7 | Chain: | A | |
| 6XRG | Alternative model: | 8 | Chain: | A | |
| 6XRG | Alternative model: | 9 | Chain: | A | |
| Structural information | |
| DFG conformation: | out |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 65° (17.9Å) |
| G-rich loop rotation: | 72.9° |
| Quality Score: | 7.6 |
| Resolution: | 0 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

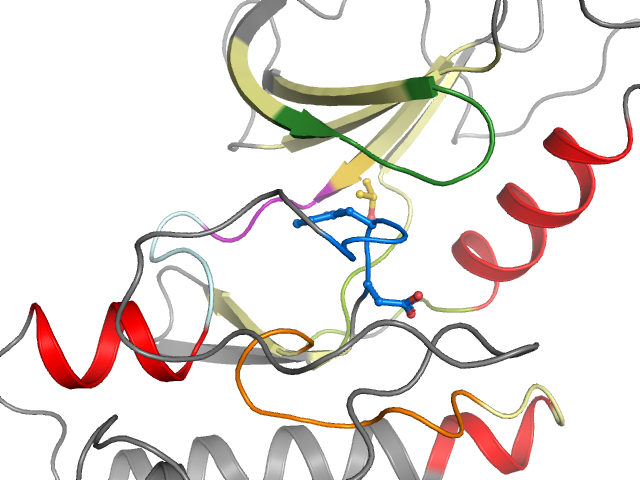

| Pocket alignment | |
| Uniprot sequence: | HKLGGGQYGEVYEVAVKTLEFLKEAAVMKEIKPNLVQLLGVYIITEFMTYGNLLDYLREYLEKKNFIHRDLAARNCLVVADFGLS |
| Sequence structure: | HKLGEGQYGEVYEVAVKTLEFLKEAAVLKEIKPNLVQLLGVYIITEFMTYGNLLDYLREYLEKKNFIHRDLAARNCLVVADFGLS |
