PDB-code
| Kinase structure | |
| Kinase: | IRAK4 |
| Family: | IRAK |
| Group: | TKL |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 2045 |
| PDB: | 7C2W |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2020-11-25 |
| PubMed: | 33335659 |
| Chain: | D |
| (Alternate) Model: | A |
| More entries for 7C2W | |||||
| 7C2W | Alternative model: | A | Chain: | A | |
| 7C2W | Alternative model: | A | Chain: | B | |
| 7C2W | Alternative model: | A | Chain: | C | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 48.4° (15.1Å) |
| G-rich loop rotation: | 57.9° |
| Quality Score: | 8 |
| Resolution: | 3.2 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

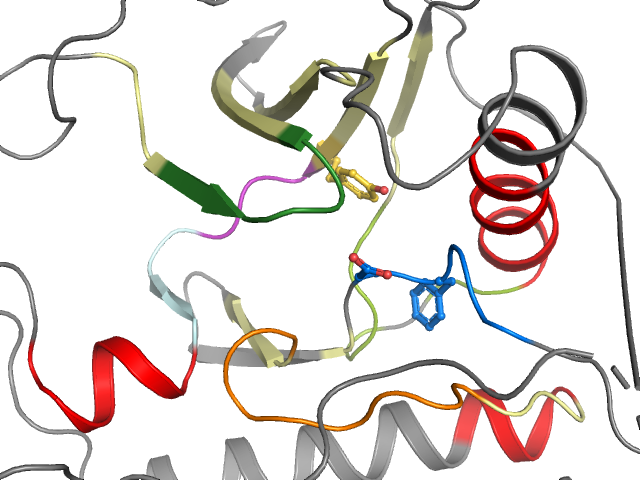

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I5 | Ligand No | Protein Yes | ||
| Pocket alignment | |
| Uniprot sequence: | NKMGEGGFGVVYKVAVKKLQFDQEIKVMAKCQENLVELLGFCLVYVYMPNGSLLDRLSCFLHENHHIHRDIKSANILLISDFGLA |
| Sequence structure: | NKMGEGGFGVVYKVAVKKLQFDQEIKVMAKCQENLVELLGFCLVYVYMPNGSLLDRLSCFLHENHHIHRDIKSANILLISDFGLA |
