PDB-code
| Kinase structure | |
| Kinase: | CAMK2A (CaMK2a) |
| Family: | CAMK2 |
| Group: | CAMK |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1555 |
| PDB: | 6X5Q |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2020-12-23 |
| PubMed: | 35830796 |
| Chain: | A |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 62.8° (18.8Å) |
| G-rich loop rotation: | 51° |
| Quality Score: | 8.5 |
| Resolution: | 2.14 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 15 |

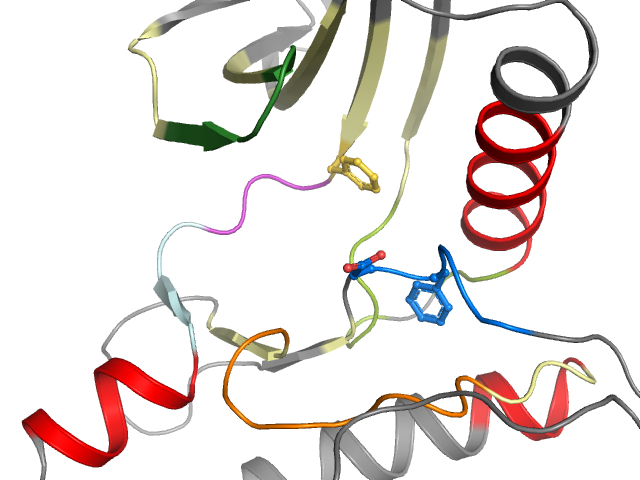

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I4 I5 I8 | Ligand No No No | Protein Yes Yes Yes | ||
| Pocket alignment | |
| Uniprot sequence: | EELGKGAFSVVRRYAAKIIKLEREARICRLLKPNIVRLHDSYLIFDLVTGGELFEDIVAHCHQMGVVHRDLKPENLLLLADFGLA |
| Sequence structure: | EELGKGAFSVVRRYAAKIIKLEREARICRLLKPNIVRLHDSYLIFDLVTGGELFEDIVAHCHQMGVVHRNLKPENLLLLADFGLA |
