PDB-code
| Kinase structure | |
| Kinase: | MAPKAPK2 |
| Family: | MAPKAPK |
| Group: | CAMK |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 2094 |
| PDB: | 2OZA |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2007-04-03 |
| PubMed: | 17395714 |
| Chain: | A |
| More entries for 2OZA | |||
| 2OZA | Chain: | B | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 58.7° (17.1Å) |
| G-rich loop rotation: | 59° |
| Quality Score: | 8 |
| Resolution: | 2.7 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

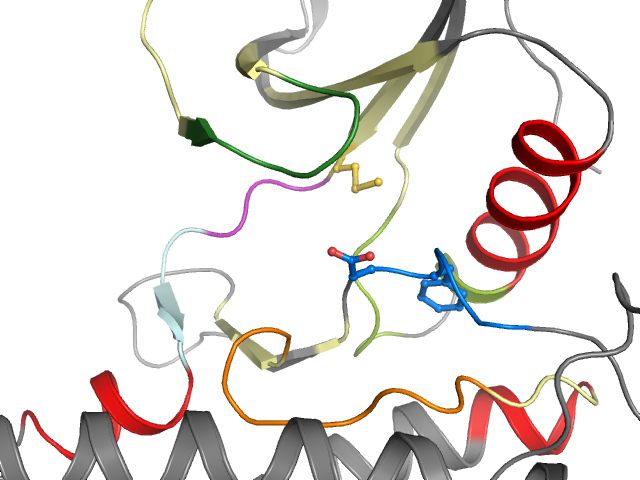

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I4 I5 | Ligand No No | Protein Yes Yes | ||
| Pocket alignment | |
| Uniprot sequence: | QVLGLGINGKVLQFALKMLKARREVELHWRASPHIVRIVDVLIVMECLDGGELFSRIQDYLHSINIAHRDVKPENLLYLTDFGFA |
| Sequence structure: | QVLGLGINGKVLQFALKMLKARREVELHWRASPHIVRIVDVLIVMECLDGGELFSRIQDYLHSINIAHRDVKPENLLYLTDFGFA |
