PDB-code
| Kinase structure | |
| Kinase: | JAK2 |
| Family: | JakA |
| Group: | TK |
| Species: | HUMAN |
| PDB: | 6VNE |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2021-02-17 |
| PubMed: | 33570945 |
| Chain: | B |
| Orthosteric ligand: | 2TA |
 | |
| More entries for 6VNE | |||
| 6VNE | Chain: | A | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 50.2° (15.7Å) |
| G-rich loop rotation: | 38.9° |
| Quality Score: | 8 |
| Resolution: | 2.32 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |

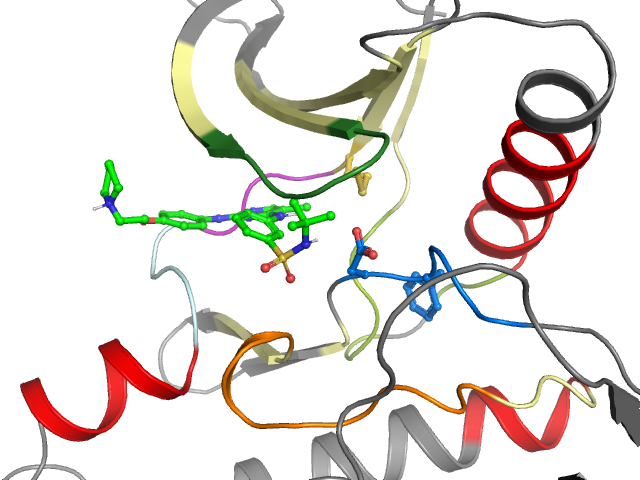

| Ligand binding mode | ||||
| Pockets | Subpockets | Waters | ||
| front | FP-II | Cluster I1 I4 | Ligand No No | Protein Yes Yes |
| Pocket alignment | |
| Uniprot sequence: | QQLGKGNFGSVEMVAVKKLDFEREIEILKSLQDNIVKYKGVKLIMEYLPYGSLRDYLQKYLGTKRYIHRDLATRNILVIGDFGLT |
| Sequence structure: | QQLGKGNFGSVEMVAVKKLDFEREIEILKSLQDNIVKYKGVKLIMEYLPYGSLRDYLQKYLGTKRYIHRDLATRNILVIGDFGLT |
| Ligand affinity | |
| ChEMBL ID: | CHEMBL1287853 |
| Bioaffinities: | 344 records for 267 kinases |
| Species | Kinase (ChEMBL naming) | Median | Min | Max | Type | Records |
|---|---|---|---|---|---|---|
| Homo sapiens | Activin receptor type-1 | 6.8 | 6.8 | 6.8 | pKd | 1 |
| Homo sapiens | Activin receptor type-1B | 5.2 | 5.2 | 5.2 | pKd | 1 |
| Homo sapiens | Adaptor-associated kinase | 7.5 | 7.5 | 7.5 | pKd | 1 |
| Homo sapiens | ALK tyrosine kinase receptor | 6.2 | 6.2 | 6.2 | pKd | 1 |
| Homo sapiens | AMP-activated protein kinase, alpha-1 subunit | 5.6 | 5.6 | 5.6 | pKd | 1 |
| Homo sapiens | AMP-activated protein kinase, alpha-2 subunit | 5.3 | 5.3 | 5.3 | pKd | 1 |
| Homo sapiens | Ankyrin repeat and protein kinase domain-containing protein 1 | 5.4 | 5.4 | 5.4 | pKd | 1 |
| Homo sapiens | BMP-2-inducible protein kinase | 7.5 | 7.5 | 7.5 | pKd | 1 |
| Homo sapiens | Bone morphogenetic protein receptor type-1B | 6.4 | 6.4 | 6.4 | pKd | 1 |
| Homo sapiens | Bone morphogenetic protein receptor type-2 | 5.5 | 5.5 | 5.5 | pKd | 1 |
| Plasmodium falciparum (isolate 3D7) | Calcium-dependent protein kinase 1 | 5.9 | 5.9 | 5.9 | pKd | 1 |
| Homo sapiens | CaM kinase I alpha | 5.8 | 5.8 | 5.8 | pKd | 1 |
| Homo sapiens | CaM kinase I delta | 6.3 | 6.3 | 6.3 | pKd | 1 |
| Homo sapiens | CaM kinase I gamma | 5.5 | 5.5 | 5.5 | pKd | 1 |
| Homo sapiens | CaM kinase II alpha | 6.5 | 6.5 | 6.5 | pKd | 1 |
| Homo sapiens | CaM kinase II beta | 5.2 | 5.2 | 5.2 | pKd | 1 |
| Homo sapiens | CaM kinase II delta | 6.2 | 6.2 | 6.2 | pKd | 1 |
| Homo sapiens | CaM kinase II gamma | 6.3 | 6.3 | 6.3 | pKd | 1 |
| Homo sapiens | CaM-kinase kinase alpha | 5.8 | 5.8 | 5.8 | pKd | 1 |
| Homo sapiens | CaM-kinase kinase beta | 5.4 | 5.4 | 5.4 | pKd | 1 |
| Homo sapiens | Casein kinase II alpha | 6 | 6 | 6 | pKd | 1 |
| Homo sapiens | Casein kinase II alpha (prime) | 6.9 | 6.9 | 6.9 | pKd | 1 |
| Homo sapiens | cGMP-dependent protein kinase 1 beta | 5.4 | 5.4 | 5.4 | pKd | 1 |
| Homo sapiens | cGMP-dependent protein kinase 2 | 5.8 | 5.8 | 5.8 | pKd | 1 |
| Homo sapiens | Chaperone activity of bc1 complex-like, mitochondrial | 5.2 | 5.2 | 5.2 | pKd | 1 |
| Homo sapiens | Citron Rho-interacting kinase | 6.9 | 6.9 | 6.9 | pKd | 1 |
| Homo sapiens | c-Jun N-terminal kinase 1 | 6.6 | 6.6 | 6.6 | pKd | 1 |
| Homo sapiens | c-Jun N-terminal kinase 2 | 6.6 | 6.6 | 6.6 | pKd | 1 |
| Homo sapiens | c-Jun N-terminal kinase 3 | 6.7 | 6.7 | 6.7 | pKd | 1 |
| Homo sapiens | Cyclin-dependent kinase 4 | 5.3 | 5.3 | 6.1 | pKd | 2 |
| Homo sapiens | Cyclin-dependent kinase 7 | 6.9 | 6.9 | 6.9 | pKd | 1 |
| Homo sapiens | Cyclin-dependent kinase 9 | 5.1 | 5.1 | 5.1 | pKd | 1 |
| Homo sapiens | Cyclin-dependent kinase-like 2 | 5.9 | 5.9 | 5.9 | pKd | 1 |
| Homo sapiens | Cyclin-dependent kinase-like 5 | 5.1 | 5.1 | 5.1 | pKd | 1 |
| Homo sapiens | Death-associated protein kinase 1 | 7.8 | 7.8 | 7.8 | pKd | 1 |
| Homo sapiens | Death-associated protein kinase 2 | 7.5 | 7.5 | 7.5 | pKd | 1 |
| Homo sapiens | Death-associated protein kinase 3 | 8.9 | 8.9 | 8.9 | pKd | 1 |
| Homo sapiens | Discoidin domain-containing receptor 2 | 6 | 6 | 6 | pKd | 1 |
| Homo sapiens | Dual specificity mitogen-activated protein kinase kinase 1 | 5.3 | 5.3 | 5.3 | pKd | 1 |
| Homo sapiens | Dual specificity mitogen-activated protein kinase kinase 2 | 5.5 | 5.5 | 5.5 | pKd | 1 |
| Homo sapiens | Dual specificity mitogen-activated protein kinase kinase 3 | 5.5 | 5.5 | 5.5 | pKd | 1 |
| Homo sapiens | Dual specificity mitogen-activated protein kinase kinase 4 | 5 | 5 | 5 | pKd | 1 |
| Homo sapiens | Dual specificity mitogen-activated protein kinase kinase 5 | 6.4 | 6.4 | 6.4 | pKd | 1 |
| Homo sapiens | Dual specificity protein kinase CLK2 | 5.6 | 5.6 | 5.6 | pKd | 1 |
| Homo sapiens | Dual specificity protein kinase CLK4 | 5.7 | 5.7 | 5.7 | pKd | 1 |
| Homo sapiens | Dual specificity protein kinase TTK | 6.4 | 6.4 | 6.4 | pKd | 1 |
| Homo sapiens | Dual specificity testis-specific protein kinase 1 | 5.5 | 5.5 | 5.5 | pKd | 1 |
| Homo sapiens | Dual specificity tyrosine-phosphorylation-regulated kinase 1B | 5 | 5 | 5 | pKd | 1 |
| Homo sapiens | Dual specificty protein kinase CLK1 | 5.6 | 5.6 | 5.6 | pKd | 1 |
| Homo sapiens | Ephrin type-A receptor 1 | 6.1 | 6.1 | 6.1 | pKd | 1 |
| Homo sapiens | Ephrin type-A receptor 2 | 5.4 | 5.4 | 5.4 | pKd | 1 |
| Homo sapiens | Ephrin type-A receptor 3 | 5.2 | 5.2 | 5.2 | pKd | 1 |
| Homo sapiens | Ephrin type-A receptor 4 | 5.4 | 5.4 | 5.4 | pKd | 1 |
| Homo sapiens | Ephrin type-A receptor 6 | 5.4 | 5.4 | 5.4 | pKd | 1 |
| Homo sapiens | Ephrin type-A receptor 7 | 5.2 | 5.2 | 5.2 | pKd | 1 |
| Homo sapiens | Ephrin type-A receptor 8 | 5.1 | 5.1 | 5.1 | pKd | 1 |
| Homo sapiens | Ephrin type-B receptor 1 | 5.8 | 5.8 | 5.8 | pKd | 1 |
| Homo sapiens | Ephrin type-B receptor 2 | 5.4 | 5.4 | 5.4 | pKd | 1 |
| Homo sapiens | Ephrin type-B receptor 4 | 5.7 | 5.7 | 5.7 | pKd | 1 |
| Homo sapiens | Epidermal growth factor receptor erbB1 | 5.5 | 5.2 | 6.2 | pKd | 9 |
| Homo sapiens | Epithelial discoidin domain-containing receptor 1 | 5.7 | 5.7 | 5.7 | pKd | 1 |
| Homo sapiens | Eukaryotic translation initiation factor 2-alpha kinase 1 | 6 | 6 | 6 | pKd | 1 |
| Homo sapiens | Eukaryotic translation initiation factor 2-alpha kinase 4 | 7 | 7 | 7 | pKd | 1 |
| Homo sapiens | Fibroblast growth factor receptor 1 | 6.6 | 6.6 | 6.6 | pKd | 1 |
| Homo sapiens | Fibroblast growth factor receptor 2 | 6.3 | 6.3 | 6.3 | pKd | 1 |
| Homo sapiens | Fibroblast growth factor receptor 3 | 6.1 | 6.1 | 6.4 | pKd | 2 |
| Homo sapiens | Fibroblast growth factor receptor 4 | 5.7 | 5.7 | 5.7 | pKd | 1 |
| Homo sapiens | Focal adhesion kinase 1 | 7.4 | 7.4 | 7.4 | pKd | 1 |
| Homo sapiens | G protein-coupled receptor kinase 4 | 6.8 | 6.8 | 6.8 | pKd | 1 |
| Homo sapiens | G protein-coupled receptor kinase 7 | 5.6 | 5.6 | 5.6 | pKd | 1 |
| Homo sapiens | Hepatocyte growth factor receptor | 5.1 | 5.1 | 5.4 | pKd | 2 |
| Homo sapiens | Homeodomain-interacting protein kinase 1 | 6.1 | 6.1 | 6.1 | pKd | 1 |
| Homo sapiens | Homeodomain-interacting protein kinase 2 | 6 | 6 | 6 | pKd | 1 |
| Homo sapiens | Homeodomain-interacting protein kinase 3 | 5.9 | 5.9 | 5.9 | pKd | 1 |
| Homo sapiens | Homeodomain-interacting protein kinase 4 | 6.7 | 6.7 | 6.7 | pKd | 1 |
| Homo sapiens | Inhibitor of nuclear factor kappa B kinase alpha subunit | 6.1 | 6.1 | 6.1 | pKd | 1 |
| Homo sapiens | Inhibitor of nuclear factor kappa B kinase beta subunit | 6.4 | 6.4 | 6.4 | pKd | 1 |
| Homo sapiens | Inhibitor of nuclear factor kappa B kinase epsilon subunit | 6.4 | 6.4 | 6.4 | pKd | 1 |
| Homo sapiens | Insulin-like growth factor I receptor | 5.7 | 5.7 | 5.7 | pKd | 1 |
| Homo sapiens | Insulin receptor | 6.1 | 6.1 | 6.1 | pKd | 1 |
| Homo sapiens | Insulin receptor-related protein | 5.8 | 5.8 | 5.8 | pKd | 1 |
| Homo sapiens | Interferon-induced, double-stranded RNA-activated protein kinase | 6 | 6 | 6 | pKd | 1 |
| Homo sapiens | Interleukin-1 receptor-associated kinase 1 | 6.7 | 6.7 | 6.7 | pKd | 1 |
| Homo sapiens | Interleukin-1 receptor-associated kinase 3 | 6.9 | 6.9 | 6.9 | pKd | 1 |
| Homo sapiens | Interleukin-1 receptor-associated kinase 4 | 5.9 | 5.9 | 5.9 | pKd | 1 |
| Homo sapiens | Leucine-rich repeat serine/threonine-protein kinase 2 | 6 | 6 | 6.1 | pKd | 2 |
| Homo sapiens | Leukocyte tyrosine kinase receptor | 5.2 | 5.2 | 5.2 | pKd | 1 |
| Homo sapiens | LIM domain kinase 1 | 6 | 6 | 6 | pKd | 1 |
| Homo sapiens | LIM domain kinase 2 | 5.1 | 5.1 | 5.1 | pKd | 1 |
| Homo sapiens | Macrophage colony stimulating factor receptor | 6.2 | 6.2 | 6.2 | pKd | 1 |
| Homo sapiens | MAP kinase-interacting serine/threonine-protein kinase MNK1 | 5.1 | 5.1 | 5.1 | pKd | 1 |
| Homo sapiens | MAP kinase signal-integrating kinase 2 | 6.4 | 6.4 | 6.4 | pKd | 1 |
| Homo sapiens | MAP/microtubule affinity-regulating kinase 2 | 5.5 | 5.5 | 5.5 | pKd | 1 |
| Homo sapiens | MAP/microtubule affinity-regulating kinase 4 | 6 | 6 | 6 | pKd | 1 |
| Homo sapiens | Maternal embryonic leucine zipper kinase | 5.6 | 5.6 | 5.6 | pKd | 1 |
| Homo sapiens | Misshapen-like kinase 1 | 5.1 | 5.1 | 5.1 | pKd | 1 |
| Homo sapiens | Mitogen-activated protein kinase 15 | 6.3 | 6.3 | 6.3 | pKd | 1 |
| Homo sapiens | Mitogen-activated protein kinase 6 | 5.9 | 5.9 | 5.9 | pKd | 1 |
| Homo sapiens | Mitogen-activated protein kinase 7 | 7.2 | 7.2 | 7.2 | pKd | 1 |
| Homo sapiens | Mitogen-activated protein kinase kinase kinase 10 | 5.2 | 5.2 | 5.2 | pKd | 1 |
| Homo sapiens | Mitogen-activated protein kinase kinase kinase 11 | 5.5 | 5.5 | 5.5 | pKd | 1 |
| Homo sapiens | Mitogen-activated protein kinase kinase kinase 12 | 5.2 | 5.2 | 5.2 | pKd | 1 |
| Homo sapiens | Mitogen-activated protein kinase kinase kinase 13 | 6.2 | 6.2 | 6.2 | pKd | 1 |
| Homo sapiens | Mitogen-activated protein kinase kinase kinase 2 | 6.2 | 6.2 | 6.2 | pKd | 1 |
| Homo sapiens | Mitogen-activated protein kinase kinase kinase 3 | 5.9 | 5.9 | 5.9 | pKd | 1 |
| Homo sapiens | Mitogen-activated protein kinase kinase kinase 4 | 5.4 | 5.4 | 5.4 | pKd | 1 |
| Homo sapiens | Mitogen-activated protein kinase kinase kinase 7 | 5.5 | 5.5 | 5.5 | pKd | 1 |
| Homo sapiens | Mitogen-activated protein kinase kinase kinase 9 | 5.5 | 5.5 | 5.5 | pKd | 1 |
| Homo sapiens | Mitogen-activated protein kinase kinase kinase kinase 1 | 5.9 | 5.9 | 5.9 | pKd | 1 |
| Homo sapiens | Mitogen-activated protein kinase kinase kinase kinase 2 | 5.7 | 5.7 | 5.7 | pKd | 1 |
| Homo sapiens | Mitogen-activated protein kinase kinase kinase kinase 3 | 5.8 | 5.8 | 5.8 | pKd | 1 |
| Homo sapiens | Mixed lineage kinase 7 | 6.2 | 6.2 | 6.2 | pKd | 1 |
| Homo sapiens | Muscle, skeletal receptor tyrosine protein kinase | 6.1 | 6.1 | 6.1 | pKd | 1 |
| Homo sapiens | Myosin light chain kinase | 5 | 5 | 5 | pKd | 1 |
| Homo sapiens | myosin light chain kinase 2 | 5.5 | 5.5 | 5.5 | pKd | 1 |
| Homo sapiens | Myosin light chain kinase family member 4 | 6.9 | 6.9 | 6.9 | pKd | 1 |
| Homo sapiens | Myosin light chain kinase, smooth muscle | 6.3 | 6.3 | 6.3 | pKd | 1 |
| Homo sapiens | Myotonin-protein kinase | 6 | 6 | 6 | pKd | 1 |
| Homo sapiens | Nerve growth factor receptor Trk-A | 6.1 | 6.1 | 6.1 | pKd | 1 |
| Homo sapiens | Neurotrophic tyrosine kinase receptor type 2 | 5.5 | 5.5 | 5.5 | pKd | 1 |
| Homo sapiens | Non-receptor tyrosine-protein kinase TNK1 | 6.4 | 6.4 | 6.4 | pKd | 1 |
| Homo sapiens | NT-3 growth factor receptor | 5.1 | 5.1 | 5.1 | pKd | 1 |
| Homo sapiens | NUAK family SNF1-like kinase 1 | 7.5 | 7.5 | 7.5 | pKd | 1 |
| Homo sapiens | NUAK family SNF1-like kinase 2 | 7.3 | 7.3 | 7.3 | pKd | 1 |
| Homo sapiens | Phosphatidylinositol-4-phosphate 5-kinase type-1 alpha | 7.2 | 7.2 | 7.2 | pKd | 1 |
| Homo sapiens | Phosphatidylinositol-5-phosphate 4-kinase type-2 beta | 6.8 | 6.8 | 6.8 | pKd | 1 |
| Homo sapiens | Phosphorylase kinase gamma subunit 1 | 6.5 | 6.5 | 6.5 | pKd | 1 |
| Homo sapiens | Phosphorylase kinase gamma subunit 2 | 5.8 | 5.8 | 5.8 | pKd | 1 |
| Homo sapiens | Platelet-derived growth factor receptor alpha | 5.6 | 5.6 | 5.6 | pKd | 1 |
| Homo sapiens | Platelet-derived growth factor receptor beta | 7.4 | 7.4 | 7.4 | pKd | 1 |
| Homo sapiens | Protein kinase C epsilon | 5.1 | 5.1 | 5.1 | pKd | 1 |
| Homo sapiens | Protein kinase C nu | 5 | 5 | 5 | pKd | 1 |
| Homo sapiens | Protein kinase N1 | 6 | 6 | 6 | pKd | 1 |
| Homo sapiens | Protein tyrosine kinase 2 beta | 6.7 | 6.7 | 6.7 | pKd | 1 |
| Homo sapiens | Proto-oncogene tyrosine-protein kinase MER | 6.1 | 6.1 | 6.1 | pKd | 1 |
| Homo sapiens | Proto-oncogene tyrosine-protein kinase ROS | 6.2 | 6.2 | 6.2 | pKd | 1 |
| Homo sapiens | Putative uncharacterized serine/threonine-protein kinase SgK110 | 5.5 | 5.5 | 5.5 | pKd | 1 |
| Homo sapiens | Receptor-interacting serine/threonine-protein kinase 1 | 5.3 | 5.3 | 5.3 | pKd | 1 |
| Homo sapiens | Receptor-interacting serine/threonine-protein kinase 4 | 5 | 5 | 5 | pKd | 1 |
| Homo sapiens | Receptor protein-tyrosine kinase erbB-4 | 5.7 | 5.7 | 5.7 | pKd | 1 |
| Homo sapiens | Rho-associated protein kinase 1 | 5.7 | 5.7 | 5.7 | pKd | 1 |
| Homo sapiens | Rho-associated protein kinase 2 | 5.7 | 5.7 | 5.7 | pKd | 1 |
| Homo sapiens | Ribosomal protein S6 kinase 1 | 5.7 | 5.7 | 5.7 | pKd | 1 |
| Homo sapiens | Ribosomal protein S6 kinase alpha 1 | 5.9 | 5.9 | 6.4 | pKd | 4 |
| Homo sapiens | Ribosomal protein S6 kinase alpha 2 | 5.1 | 5.1 | 5.6 | pKd | 4 |
| Homo sapiens | Ribosomal protein S6 kinase alpha 3 | 5.1 | 5.1 | 5.1 | pKd | 2 |
| Homo sapiens | Ribosomal protein S6 kinase alpha 4 | 6.9 | 6.9 | 6.9 | pKd | 2 |
| Homo sapiens | Ribosomal protein S6 kinase alpha 5 | 5.4 | 5.4 | 5.7 | pKd | 4 |
| Homo sapiens | Ribosomal protein S6 kinase alpha 6 | 6.4 | 6.4 | 6.4 | pKd | 2 |
| Homo sapiens | Serine/threonine-protein kinase 10 | 5.5 | 5.5 | 5.5 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase 11 | 6.5 | 6.5 | 6.5 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase 16 | 8.2 | 8.2 | 8.2 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase 17A | 6.2 | 6.2 | 6.2 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase 17B | 7.4 | 7.4 | 7.4 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase 2 | 6.2 | 6.2 | 6.2 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase 25 | 5.1 | 5.1 | 5.1 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase 33 | 6.7 | 6.7 | 6.7 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase 36 | 6.1 | 6.1 | 6.1 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase 38 | 5.2 | 5.2 | 5.2 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase Aurora-A | 5.4 | 5.4 | 5.4 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase Aurora-B | 6.3 | 6.3 | 6.3 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase Aurora-C | 6.5 | 6.5 | 6.5 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase B-raf | 5 | 5 | 5 | pKd | 2 |
| Homo sapiens | Serine/threonine-protein kinase Chk1 | 5.4 | 5.4 | 5.4 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase c-TAK1 | 6.5 | 6.5 | 6.5 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase DCLK1 | 6.7 | 6.7 | 6.7 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase DCLK2 | 6.1 | 6.1 | 6.1 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase DCLK3 | 7.9 | 7.9 | 7.9 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase GAK | 9 | 9 | 9 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase ICK | 5.7 | 5.7 | 5.7 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase LATS2 | 5.1 | 5.1 | 5.1 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase MARK1 | 6.2 | 6.2 | 6.2 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase MST4 | 5.1 | 5.1 | 5.1 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase Nek1 | 5.5 | 5.5 | 5.5 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase Nek11 | 5.9 | 5.9 | 5.9 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase NEK2 | 5.8 | 5.8 | 5.8 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase Nek3 | 6.2 | 6.2 | 6.2 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase Nek4 | 5.8 | 5.8 | 5.8 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase Nek5 | 6.2 | 6.2 | 6.2 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase NEK6 | 6.9 | 6.9 | 6.9 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase NEK7 | 6.8 | 6.8 | 6.8 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase NEK9 | 6.8 | 6.8 | 6.8 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase NIM1 | 5.4 | 5.4 | 5.4 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase PAK 1 | 5.5 | 5.5 | 5.5 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase PAK 2 | 5.2 | 5.2 | 5.2 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase PAK 4 | 5.4 | 5.4 | 5.4 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase PAK6 | 5.2 | 5.2 | 5.2 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase PAK7 | 5.9 | 5.9 | 5.9 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase PCTAIRE-1 | 5.5 | 5.5 | 5.5 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase PCTAIRE-2 | 6.5 | 6.5 | 6.5 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase PCTAIRE-3 | 5.6 | 5.6 | 5.6 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase PFTAIRE-1 | 5.6 | 5.6 | 5.6 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase PFTAIRE-2 | 5.1 | 5.1 | 5.1 | pKd | 1 |
| Mycobacterium tuberculosis | Serine/threonine-protein kinase pknB | 7 | 7 | 7 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase PLK1 | 6.6 | 6.6 | 6.6 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase PLK2 | 5.6 | 5.6 | 5.6 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase PLK3 | 5.8 | 5.8 | 5.8 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase PLK4 | 7 | 7 | 7 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase PRP4 homolog | 6.4 | 6.4 | 6.4 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase receptor R3 | 5.6 | 5.6 | 5.6 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase RIO1 | 7 | 7 | 7 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase RIO2 | 5.6 | 5.6 | 5.6 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase RIO3 | 7 | 7 | 7 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase RIPK2 | 5.2 | 5.2 | 5.2 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase SBK1 | 6.1 | 6.1 | 6.1 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase Sgk3 | 5.6 | 5.6 | 5.6 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase SIK1 | 7.4 | 7.4 | 7.4 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase SIK2 | 7 | 7 | 7 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase SIK3 | 5.7 | 5.7 | 5.7 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase SRPK1 | 6.8 | 6.8 | 6.8 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase SRPK2 | 7 | 7 | 7 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase SRPK3 | 6.8 | 6.8 | 6.8 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase TAO1 | 5.9 | 5.9 | 5.9 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase TAO2 | 6.1 | 6.1 | 6.1 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase TAO3 | 5.7 | 5.7 | 5.7 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase TBK1 | 7 | 7 | 7 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase TNNI3K | 5.8 | 5.8 | 5.8 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase tousled-like 1 | 5.9 | 5.9 | 5.9 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase tousled-like 2 | 5.7 | 5.7 | 5.7 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase ULK1 | 6.6 | 6.6 | 6.6 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase ULK2 | 7.1 | 7.1 | 7.1 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase ULK3 | 6.5 | 6.5 | 6.5 | pKd | 1 |
| Homo sapiens | Serine/threonine-protein kinase WEE1 | 6.4 | 6.4 | 6.4 | pKd | 1 |
| Homo sapiens | SNF-related serine/threonine-protein kinase | 6.6 | 6.6 | 6.6 | pKd | 1 |
| Homo sapiens | SPS1/STE20-related protein kinase YSK4 | 7.7 | 7.7 | 7.7 | pKd | 1 |
| Homo sapiens | STE20/SPS1-related proline-alanine-rich protein kinase | 5.8 | 5.8 | 5.8 | pKd | 1 |
| Homo sapiens | Stem cell growth factor receptor | 6.8 | 5.5 | 7.3 | pKd | 8 |
| Homo sapiens | Testis-specific serine/threonine-protein kinase 1 | 5.9 | 5.9 | 5.9 | pKd | 1 |
| Homo sapiens | TGF-beta receptor type II | 6 | 6 | 6 | pKd | 1 |
| Homo sapiens | Tyrosine kinase non-receptor protein 2 | 7.2 | 7.2 | 7.2 | pKd | 1 |
| Homo sapiens | Tyrosine-protein kinase ABL | 7.2 | 5.7 | 7.4 | pKd | 15 |
| Homo sapiens | Tyrosine-protein kinase ABL2 | 6.2 | 6.2 | 6.2 | pKd | 1 |
| Homo sapiens | Tyrosine-protein kinase BLK | 6.2 | 6.2 | 6.2 | pKd | 1 |
| Homo sapiens | Tyrosine-protein kinase BMX | 5.9 | 5.9 | 5.9 | pKd | 1 |
| Homo sapiens | Tyrosine-protein kinase BRK | 5.9 | 5.9 | 5.9 | pKd | 1 |
| Homo sapiens | Tyrosine-protein kinase BTK | 6.1 | 6.1 | 6.1 | pKd | 1 |
| Homo sapiens | Tyrosine-protein kinase CSK | 5.2 | 5.2 | 5.2 | pKd | 1 |
| Homo sapiens | Tyrosine-protein kinase CTK | 5.8 | 5.8 | 5.8 | pKd | 1 |
| Homo sapiens | Tyrosine-protein kinase FER | 6 | 6 | 6 | pKd | 1 |
| Homo sapiens | Tyrosine-protein kinase FES | 6.3 | 6.3 | 6.3 | pKd | 1 |
| Homo sapiens | Tyrosine-protein kinase FGR | 7.1 | 7.1 | 7.1 | pKd | 1 |
| Homo sapiens | Tyrosine-protein kinase FRK | 6.7 | 6.7 | 6.7 | pKd | 1 |
| Homo sapiens | Tyrosine-protein kinase FYN | 7.4 | 7.4 | 7.4 | pKd | 1 |
| Homo sapiens | Tyrosine-protein kinase HCK | 5.7 | 5.7 | 5.7 | pKd | 1 |
| Homo sapiens | Tyrosine-protein kinase ITK/TSK | 6.3 | 6.3 | 6.3 | pKd | 1 |
| Homo sapiens | Tyrosine-protein kinase JAK1 | 7 | 7 | 7 | pIC50 | 2 |
| Homo sapiens | Tyrosine-protein kinase JAK1 | 5.7 | 5.7 | 7.8 | pKd | 4 |
| Homo sapiens | Tyrosine-protein kinase JAK2 | 8.5 | 8.5 | 8.5 | pIC50 | 6 |
| Homo sapiens | Tyrosine-protein kinase JAK2 | 9 | 9 | 9 | pKd | 2 |
| Homo sapiens | Tyrosine-protein kinase JAK3 | 6 | 6 | 6 | pIC50 | 2 |
| Homo sapiens | Tyrosine-protein kinase JAK3 | 7.1 | 7.1 | 7.1 | pKd | 2 |
| Homo sapiens | Tyrosine-protein kinase LCK | 7.1 | 7.1 | 7.1 | pKd | 1 |
| Homo sapiens | Tyrosine-protein kinase Lyn | 6.3 | 6.3 | 6.3 | pKd | 1 |
| Homo sapiens | Tyrosine-protein kinase receptor FLT3 | 7.8 | 7.8 | 7.8 | pIC50 | 1 |
| Homo sapiens | Tyrosine-protein kinase receptor FLT3 | 7.9 | 7.5 | 8.3 | pKd | 7 |
| Homo sapiens | Tyrosine-protein kinase receptor RET | 7.3 | 7.3 | 7.3 | pIC50 | 1 |
| Homo sapiens | Tyrosine-protein kinase receptor RET | 6.9 | 6.8 | 7.2 | pKd | 4 |
| Homo sapiens | Tyrosine-protein kinase receptor Tie-1 | 6.2 | 6.2 | 6.2 | pKd | 1 |
| Homo sapiens | Tyrosine-protein kinase receptor UFO | 6.8 | 6.8 | 6.8 | pKd | 1 |
| Homo sapiens | Tyrosine-protein kinase SRC | 7.1 | 7.1 | 7.1 | pKd | 1 |
| Homo sapiens | Tyrosine-protein kinase Srms | 5.3 | 5.3 | 5.3 | pKd | 1 |
| Homo sapiens | Tyrosine-protein kinase SYK | 5.6 | 5.6 | 5.6 | pKd | 1 |
| Homo sapiens | Tyrosine-protein kinase TIE-2 | 5.7 | 5.7 | 5.7 | pKd | 1 |
| Homo sapiens | Tyrosine-protein kinase TXK | 5.8 | 5.8 | 5.8 | pKd | 1 |
| Homo sapiens | Tyrosine-protein kinase TYK2 | 6.8 | 6.8 | 6.8 | pIC50 | 2 |
| Homo sapiens | Tyrosine-protein kinase TYK2 | 6.4 | 6.4 | 7.7 | pKd | 4 |
| Homo sapiens | Tyrosine-protein kinase YES | 6.9 | 6.9 | 6.9 | pKd | 1 |
| Homo sapiens | Tyrosine-protein kinase ZAP-70 | 5.4 | 5.4 | 5.4 | pKd | 1 |
| Homo sapiens | Uncharacterized aarF domain-containing protein kinase 4 | 6.5 | 6.5 | 6.5 | pKd | 1 |
| Homo sapiens | Vascular endothelial growth factor receptor 1 | 5.4 | 5.4 | 5.4 | pKd | 1 |
| Homo sapiens | Vascular endothelial growth factor receptor 2 | 5.3 | 5.3 | 5.3 | pKd | 1 |
| Homo sapiens | Vascular endothelial growth factor receptor 3 | 5.7 | 5.7 | 5.7 | pKd | 1 |
| Homo sapiens | Wee1-like protein kinase 2 | 5.2 | 5.2 | 5.2 | pKd | 1 |
Kinase-ligand interaction pattern
• Hydrophobic • Aromatic face-to-face • Aromatic face-to-edge • H-bond donor • H-bond acceptor • Ionic positive • Ionic negative
| I | g.l | II | III | αC | |||||||||||||||
| 1 Q 853 | 2 Q 854 | 3 L 855 | 4 G 856 | 5 K 857 | 6 G 858 | 7 N 859 | 8 F 860 | 9 G 861 | 10 S 862 | 11 V 863 | 12 E 864 | 13 M 865 | 14 V 879 | 15 A 880 | 16 V 881 | 17 K 882 | 18 K 883 | 19 L 884 | 20 D 894 |
| • | • | • | • | • | • | • | • | ||||||||||||
| αC | b.l | IV | |||||||||||||||||
| 21 F 895 | 22 E 896 | 23 R 897 | 24 E 898 | 25 I 899 | 26 E 900 | 27 I 901 | 28 L 902 | 29 K 903 | 30 S 904 | 31 L 905 | 32 Q 906 | 33 D 908 | 34 N 909 | 35 I 910 | 36 V 911 | 37 K 912 | 38 Y 913 | 39 K 914 | 40 G 915 |
| • | |||||||||||||||||||
| IV | V | GK | hinge | linker | αD | αE | |||||||||||||
| 41 V 916 | 42 K 926 | 43 L 927 | 44 I 928 | 45 M 929 | 46 E 930 | 47 Y 931 | 48 L 932 | 49 P 933 | 50 Y 934 | 51 G 935 | 52 S 936 | 53 L 937 | 54 R 938 | 55 D 939 | 56 Y 940 | 57 L 941 | 58 Q 942 | 59 K 943 | 60 Y 966 |
| • | • | •• | ••• | • | |||||||||||||||
| αE | VI | c.l | VII | VIII | x | ||||||||||||||
| 61 L 967 | 62 G 968 | 63 T 969 | 64 K 970 | 65 R 971 | 66 Y 972 | 67 I 973 | 68 H 974 | 69 R 975 | 70 D 976 | 71 L 977 | 72 A 978 | 73 T 979 | 74 R 980 | 75 N 981 | 76 I 982 | 77 L 983 | 78 V 984 | 79 I 992 | 80 G 993 |
| • | |||||||||||||||||||
| DFG | a.l | ||||||||||||||||||
| 81 D 994 | 82 F 995 | 83 G 996 | 84 L 997 | 85 T 998 | |||||||||||||||
| • | |||||||||||||||||||
Interaction pattern search
Search KLIFS for kinase-ligand complexes with similar interaction patterns:
