PDB-code
| Kinase structure | |
| Kinase: | MAPKAPK2 |
| Family: | MAPKAPK |
| Group: | CAMK |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 2094 |
| PDB: | 3R2B |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2011-05-25 |
| PubMed: | 21565500 |
| Chain: | D |
| More entries for 3R2B | |||
| 3R2B | Chain: | A | |
| 3R2B | Chain: | B | |
| 3R2B | Chain: | C | |
| 3R2B | Chain: | E | |
| 3R2B | Chain: | F | |
| 3R2B | Chain: | G | |
| 3R2B | Chain: | H | |
| 3R2B | Chain: | I | |
| 3R2B | Chain: | J | |
| 3R2B | Chain: | K | |
| 3R2B | Chain: | L | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 47.7° (14.6Å) |
| G-rich loop rotation: | 72.5° |
| Quality Score: | 8.3 |
| Resolution: | 2.9 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 17 |

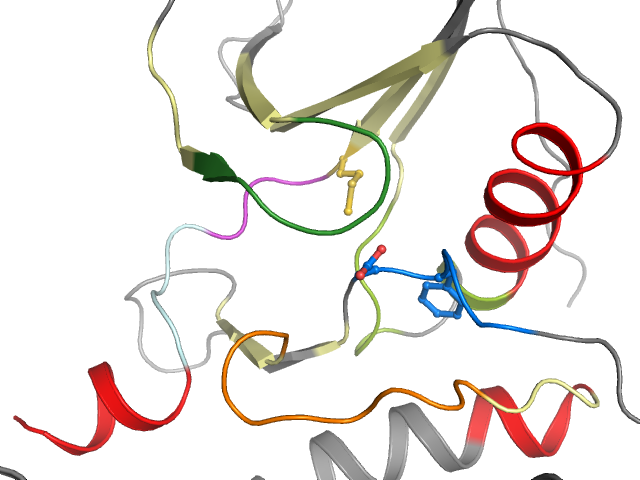

| Pocket alignment | |
| Uniprot sequence: | QVLGLGINGKVLQFALKMLKARREVELHWRASPHIVRIVDVLIVMECLDGGELFSRIQDYLHSINIAHRDVKPENLLYLTDFGFA |
| Sequence structure: | QVLGLGINGKVLQFALKMLKARREVELHWRASPHIVRIVDVLIVMECLDGGELFSRIQDYLHSINIAHRDVKPENLLYLTDFGFA |
