PDB-code
| Kinase structure | |
| Kinase: | INSR |
| Family: | InsR |
| Group: | TK |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1800 |
| PDB: | 7BW8 |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2021-04-14 |
| Chain: | A |
| More entries for 7BW8 | |||
| 7BW8 | Chain: | C | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | out |
| G-rich loop angle (distance): | 26.7° (30.2Å) |
| G-rich loop rotation: | 149.2° |
| Quality Score: | 0 |
| Resolution: | 3.8 Å |
| Missing Residues: | 14 |
| Missing Atoms: | 0 |

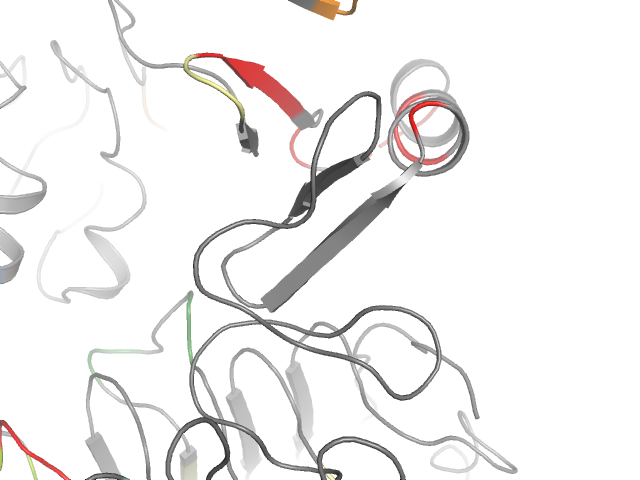

| Pocket alignment | |
| Uniprot sequence: | RELGQGSFGMVYEVAVKTVEFLNEASVMKGFT-HVVRLLGVLVVMELMAHGDLKSYLRSYLNAKKFVHRDLAARNCMVIGDFGMT |
| Sequence structure: | KLIGKGSFNVIF_VHLKLMN__NELDILDSVNDN___________EHCQHGSQFLHSRHVIHNNMNSSNLLLINIGAA |
