PDB-code
| Kinase structure | |
| Kinase: | PAK4 |
| Family: | STE20 |
| Group: | STE |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 2136 |
| PDB: | 4FIH |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2012-09-12 |
| PubMed: | 22988085 |
| Chain: | A |
| (Alternate) Model: | B |
| More entries for 4FIH | |||||
| 4FIH | Alternative model: | A | Chain: | A | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 49.5° (14.8Å) |
| G-rich loop rotation: | 65.8° |
| Quality Score: | 8 |
| Resolution: | 1.97 Å |
| Missing Residues: | 0 |
| Missing Atoms: | 0 |
| Ligand binding mode | ||||
| Waters | ||||
| Cluster I1 I2 I3 I4 I7 I8 I9 | Ligand No No No No No No No | Protein Yes No No Yes No Yes No | ||

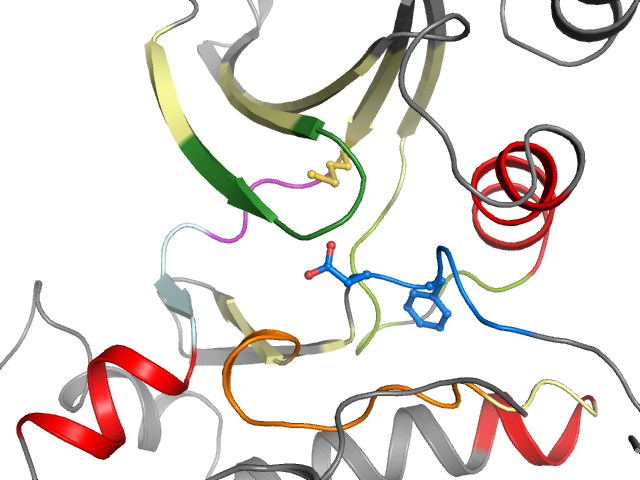

| Pocket alignment | |
| Uniprot sequence: | IKIGEGSTGIVCIVAVKKMLLFNEVVIMRDYQENVVEMYNSWVVMEFLEGGALTDIVTHVLHAQGVIHRDIKSDSILLLSDFGFC |
| Sequence structure: | IKIGEGSTGIVCIVAVKKMLLFNEVVIMRDYQENVVEMYNSWVVMEFLEGGALTDIVTHVLHAQGVIHRDIKSDSILLLSDFGFC |
