PDB-code
| Kinase structure | |
| Kinase: | PAK1 |
| Family: | STE20 |
| Group: | STE |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 2133 |
| PDB: | 8X5Z |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2023-12-06 |
| Chain: | A |
| (Alternate) Model: | B |
| More entries for 8X5Z | |||||
| 8X5Z | Alternative model: | A | Chain: | A | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | - |
| G-rich loop rotation: | - |
| Quality Score: | 6.8 |
| Resolution: | 1.8 Å |
| Missing Residues: | 3 |
| Missing Atoms: | 0 |
| Ligand binding mode | ||||
| Waters | ||||
| Cluster I1 I2 I4 I6 I8 | Ligand No No No No No | Protein No No Yes No Yes | ||

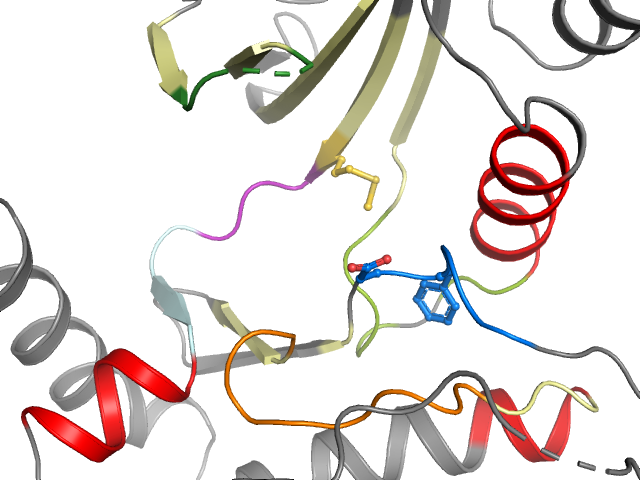

| Pocket alignment | |
| Uniprot sequence: | EKIGQGASGTVYTVAIKQMLIINEILVMRENKPNIVNYLDSWVVMEYLAGGSLTDVVTEFLHSNQVIHRDIKSDNILLLTDFGFC |
| Sequence structure: | EKIGQ___GTVYTVAIRQMLIINEILVMRENKPNIVNYLDSWVVMEYLAGGSLTDVVTEFLHSNQVIHRDIKSDNILLLTDFGFC |
