PDB-code
| Kinase structure | |
| Kinase: | MAP3K14 (NIK) |
| Family: | STE-Unique |
| Group: | STE |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 2074 |
| PDB: | 4G3D |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2012-08-15 |
| PubMed: | 22921830 |
| Chain: | D |
| More entries for 4G3D | |||
| 4G3D | Chain: | A | |
| 4G3D | Chain: | B | |
| 4G3D | Chain: | E | |
| Structural information | |
| DFG conformation: | in |
| αC-helix conformation: | in |
| G-rich loop angle (distance): | 53.4° (15.4Å) |
| G-rich loop rotation: | 107.1° |
| Quality Score: | 6.8 |
| Resolution: | 2.9 Å |
| Missing Residues: | 3 |
| Missing Atoms: | 0 |

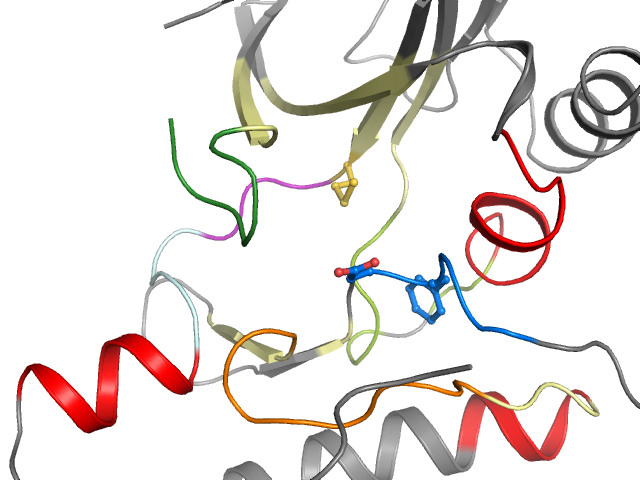

| Pocket alignment | |
| Uniprot sequence: | LRLGRGSFGEVHRCAVKKVFRAEELMACAGLTPRIVPLYGANIFMELLEGGSLGQLVKEYLHSRRILHGDVKADNVLLLCDFGHA |
| Sequence structure: | ___GRGSFGEVHRCAVKKVFRAEELMACAGLTPRIVPLYGANIFMELLEGGSLGQLVKEYLHSRRILHGDVKADNVLLLCDFGHA |
