PDB-code
| Kinase structure | |
| Kinase: | AKT1 |
| Family: | Akt |
| Group: | AGC |
| Species: | HUMAN |
| IUPHAR/BPS ID: | 1479 |
| PDB: | 4EJN |
| sc-PDB: | |
| KIDFamMap: | Search |
| Release date: | 2012-05-23 |
| PubMed: | 22533986 |
| Chain: | A |
| Structural information | |
| DFG conformation: | out |
| αC-helix conformation: | na |
| G-rich loop angle (distance): | 65.3° (19Å) |
| G-rich loop rotation: | 56.2° |
| Quality Score: | 4.4 |
| Resolution: | 2.19 Å |
| Missing Residues: | 7 |
| Missing Atoms: | 22 |

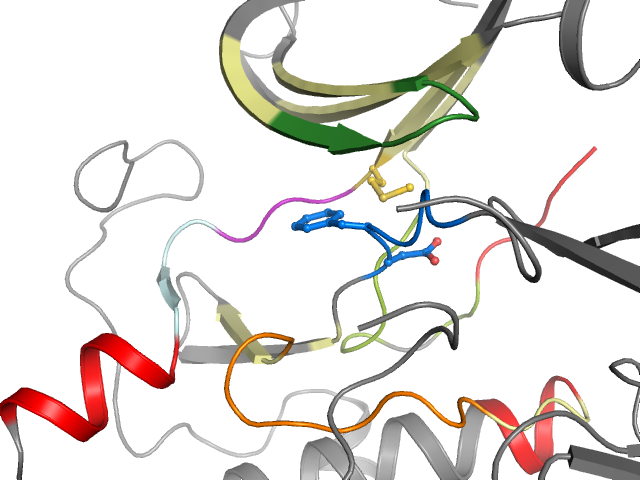

| Ligand binding mode | ||||
| Waters | ||||
| Cluster I3 I7 | Ligand No No | Protein No No | ||
| Allosteric Ligand | |
| Allosteric ligand: | 0R4 |
 | |
| Pocket alignment | |
| Uniprot sequence: | KLLGKGTFGKVILYAMKILHTLTENRVLQNSRPFLTALKYSCFVMEYANGGELFFHLSRLHSEKNVVYRDLKLENLMLITDFGLC |
| Sequence structure: | KLLGKGTFGKVILYAMKIL_______VLQNSRPFLTALKYSCFVMEYANGGELFFHLSRLHSEKNVVYRDLKLENLMLITDFGLC |
